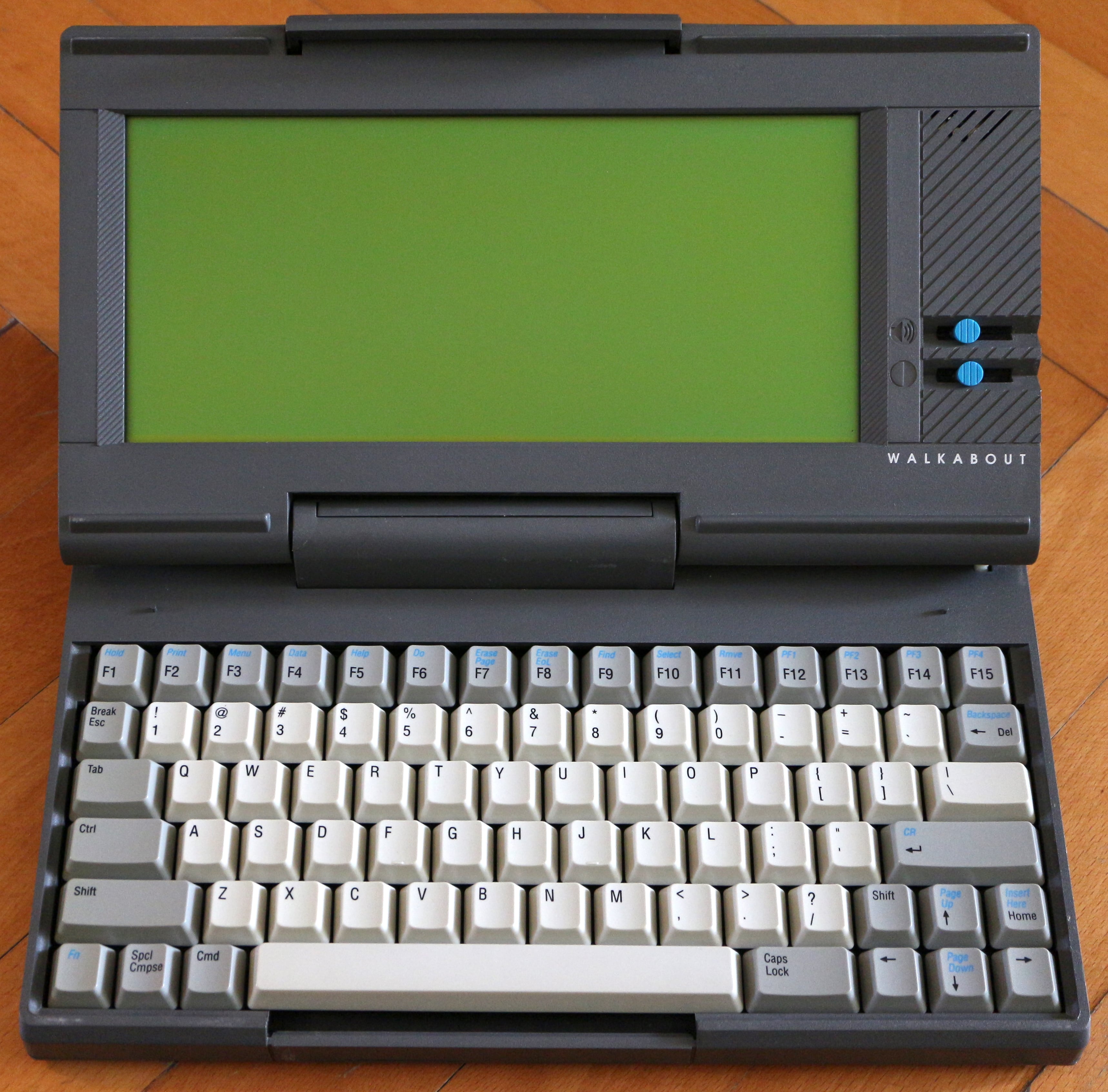

Data General Walkabout G2750 The Data General Walkabout G2750 is a portable RS232 terminal (VT220, ADM-3A, or D216 emulation) with built-in modem and a few other features, such as a notetaking app.

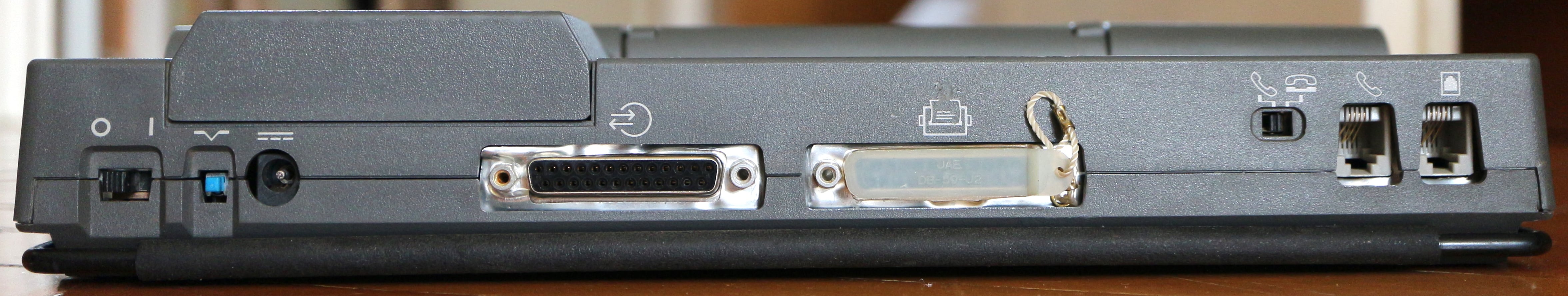

Pictures ↵ ^ Data General Walkabout (back) From left to right: power switch, reset button, power jack (DC 9V 1A), RS232 serial, parallel printer port, modem switch, phone and line jacks.

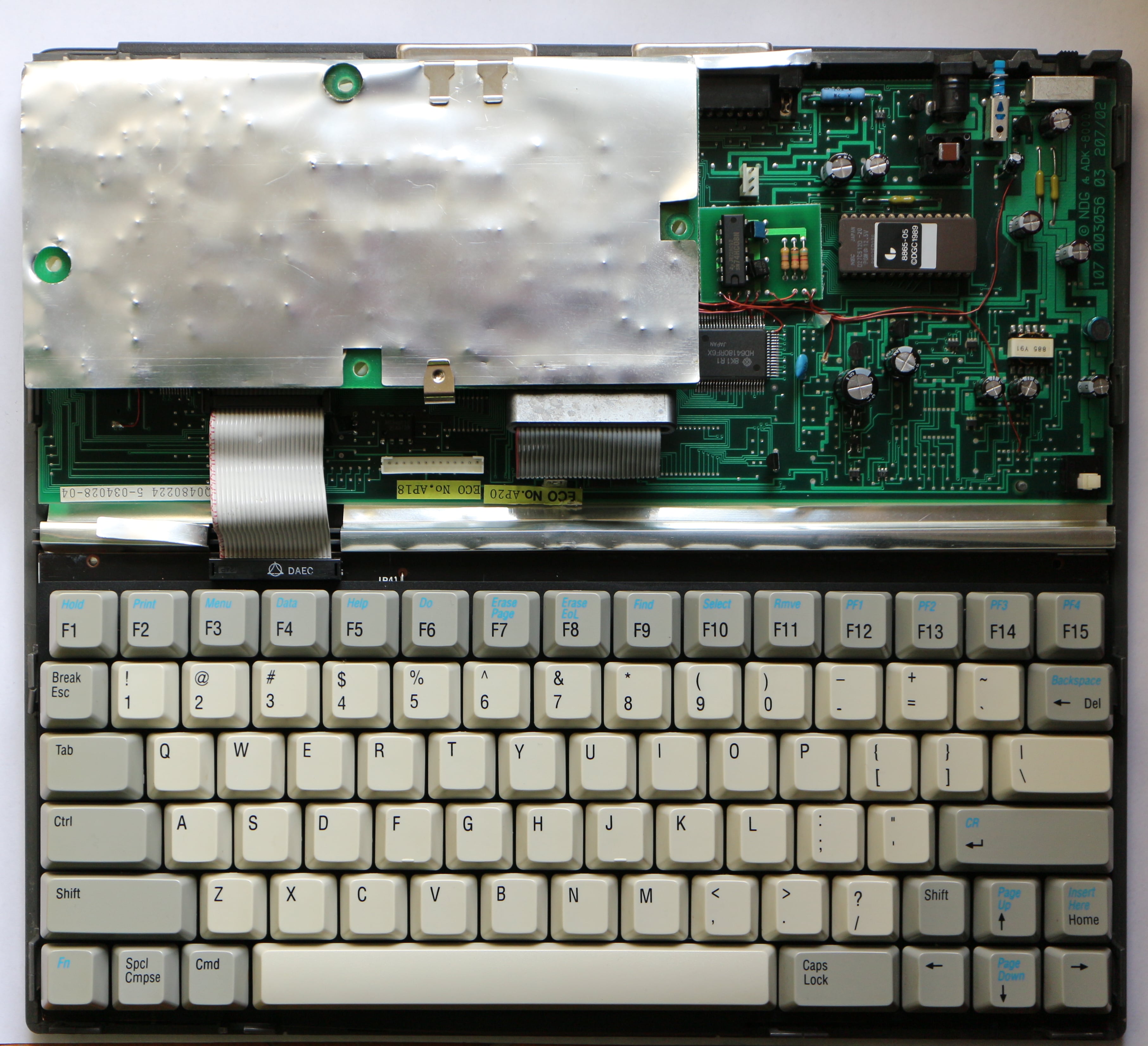

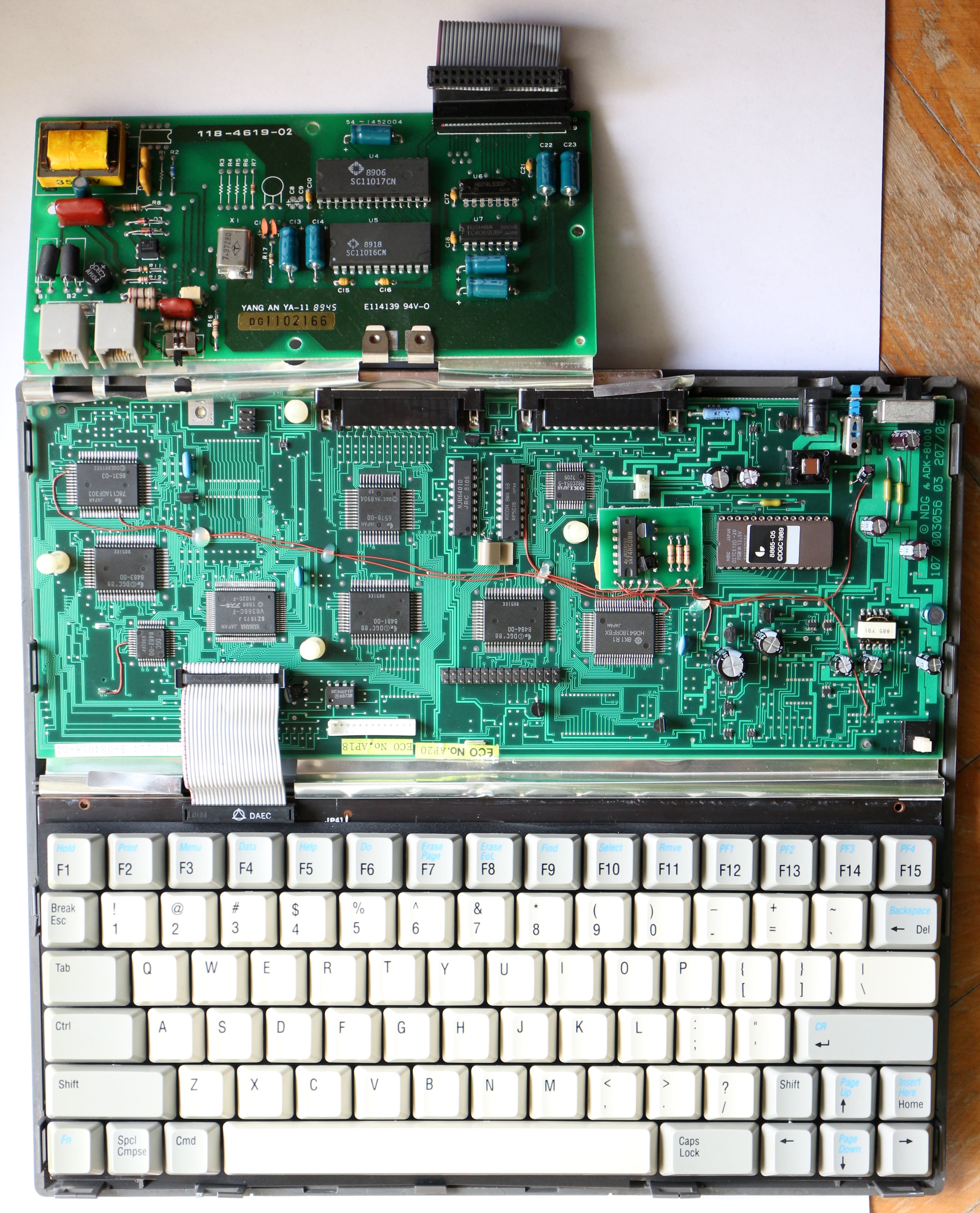

Data General Walkabout (fully disassembled) From top to bottom: modem board, motherboard, keyboard.

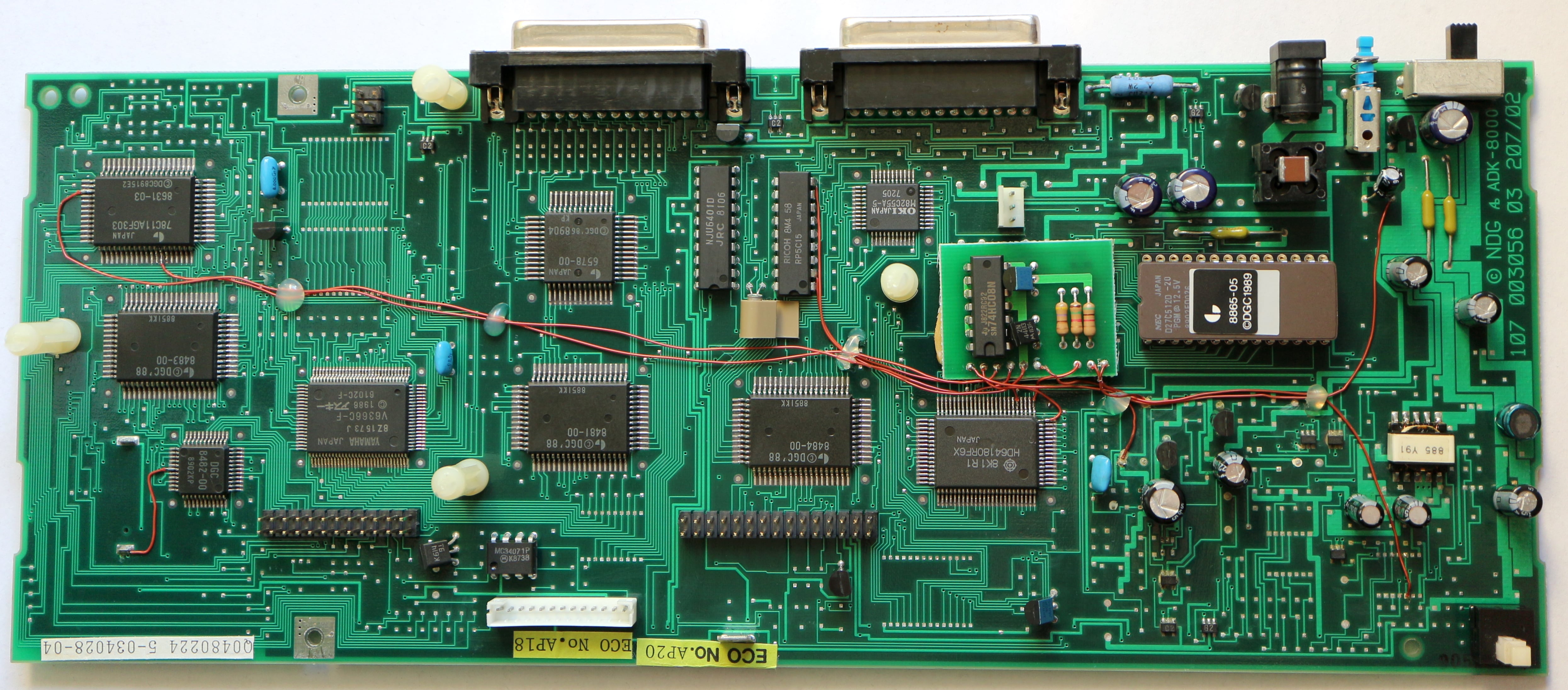

Data General Walkabout Motherboard (front) This board had some damage because of capacitor leakage and one surface-mount transistor has totally corroded and fallen off, but oddly enough, the system works fine without it after cleaning everything and replacing the capacitors.

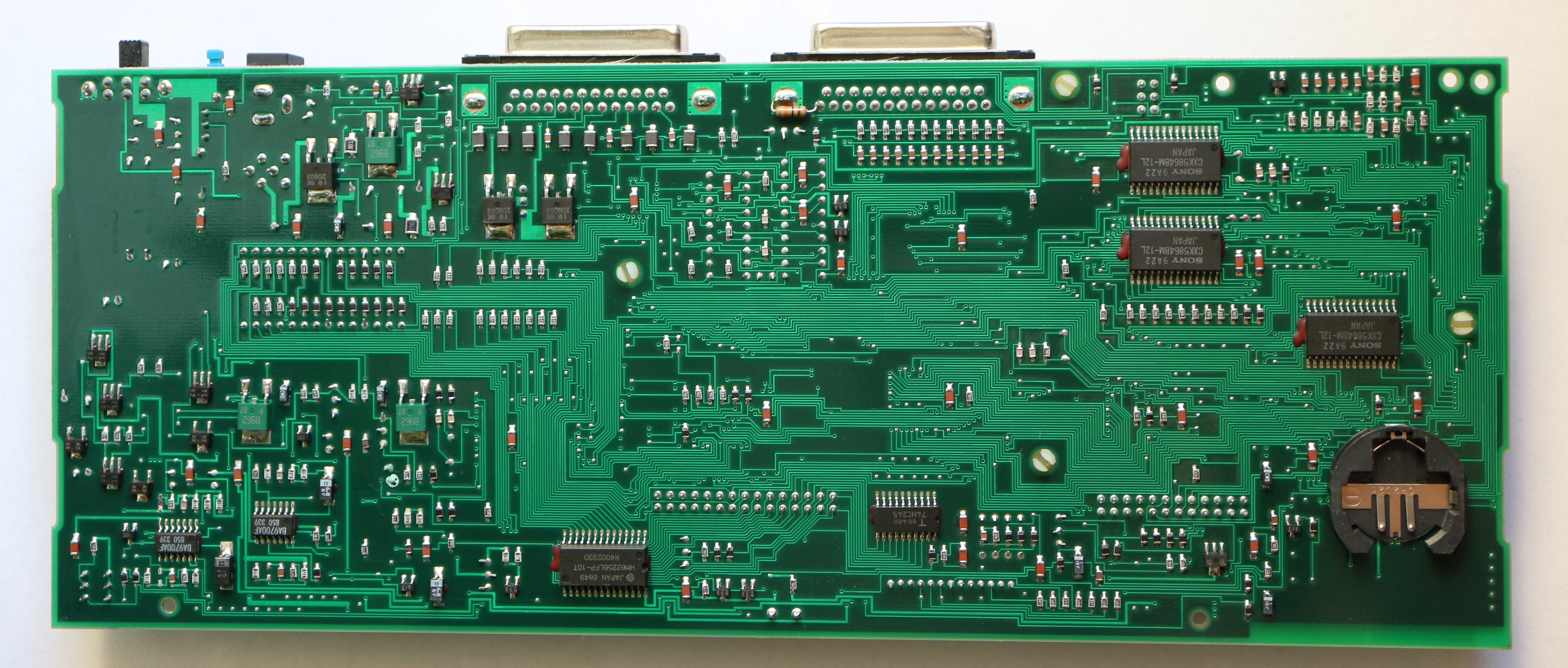

Data General Walkabout Motherboard (back)

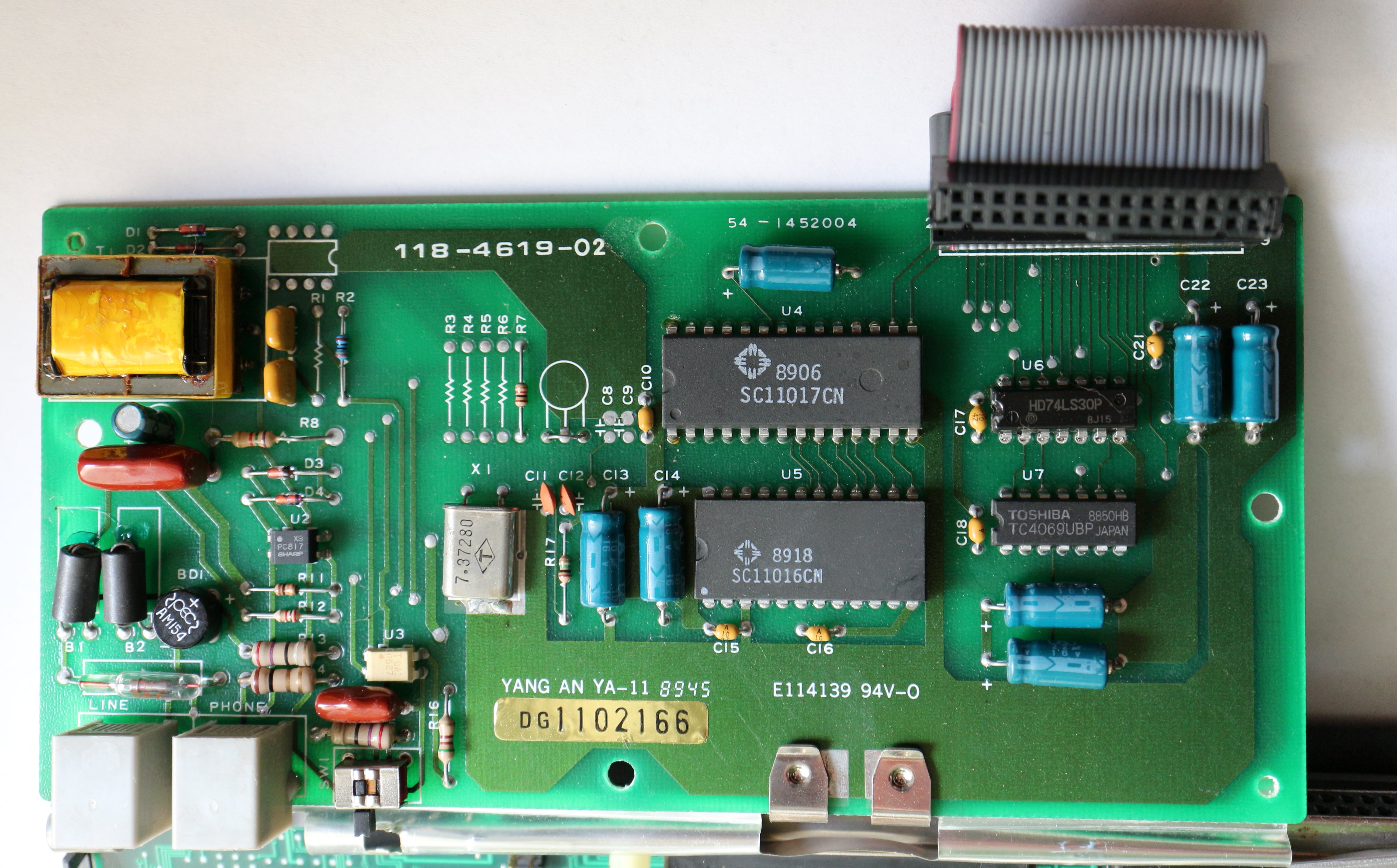

Data General Walkabout Modem board (front)

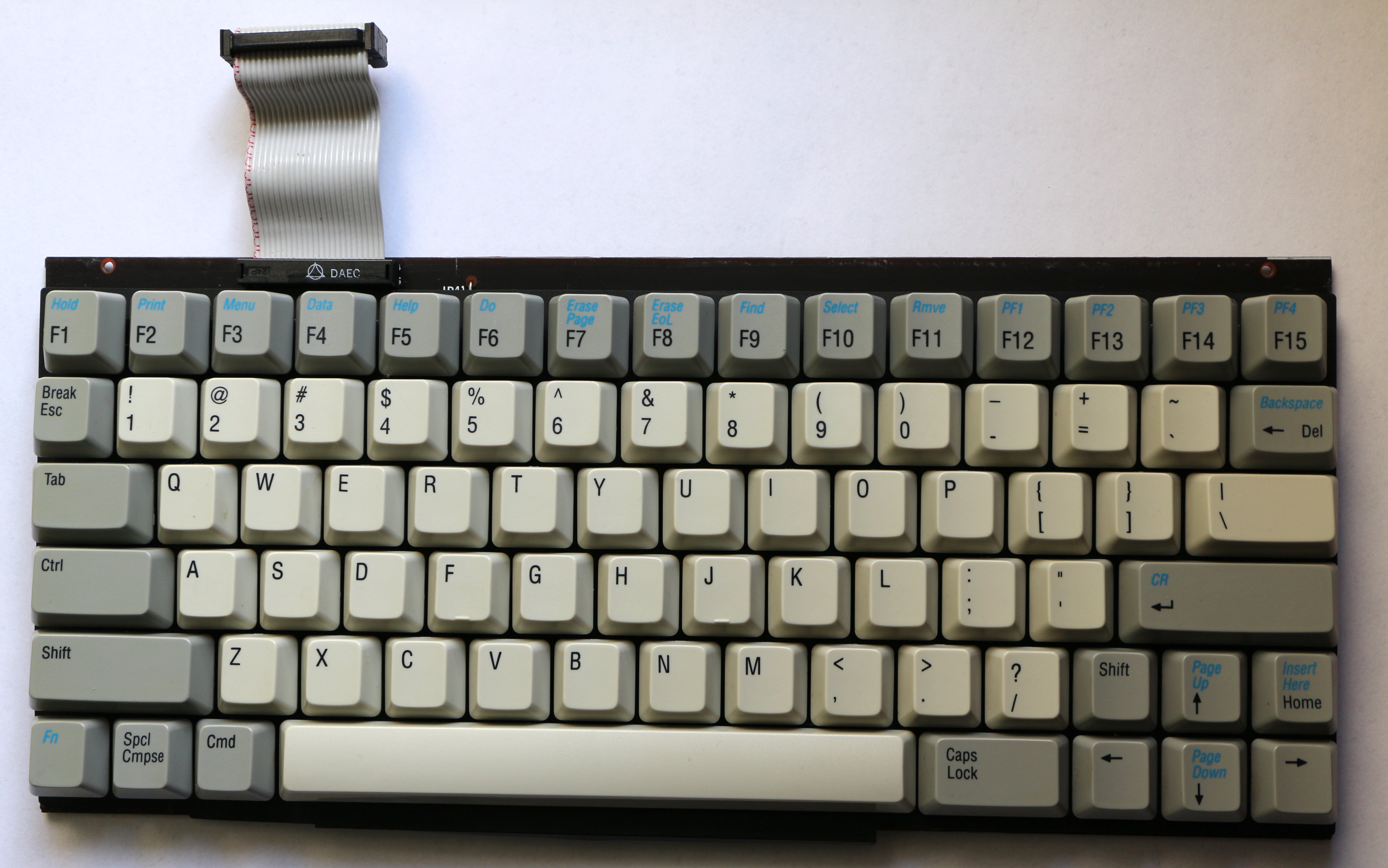

Data General Walkabout Keyboard (front)

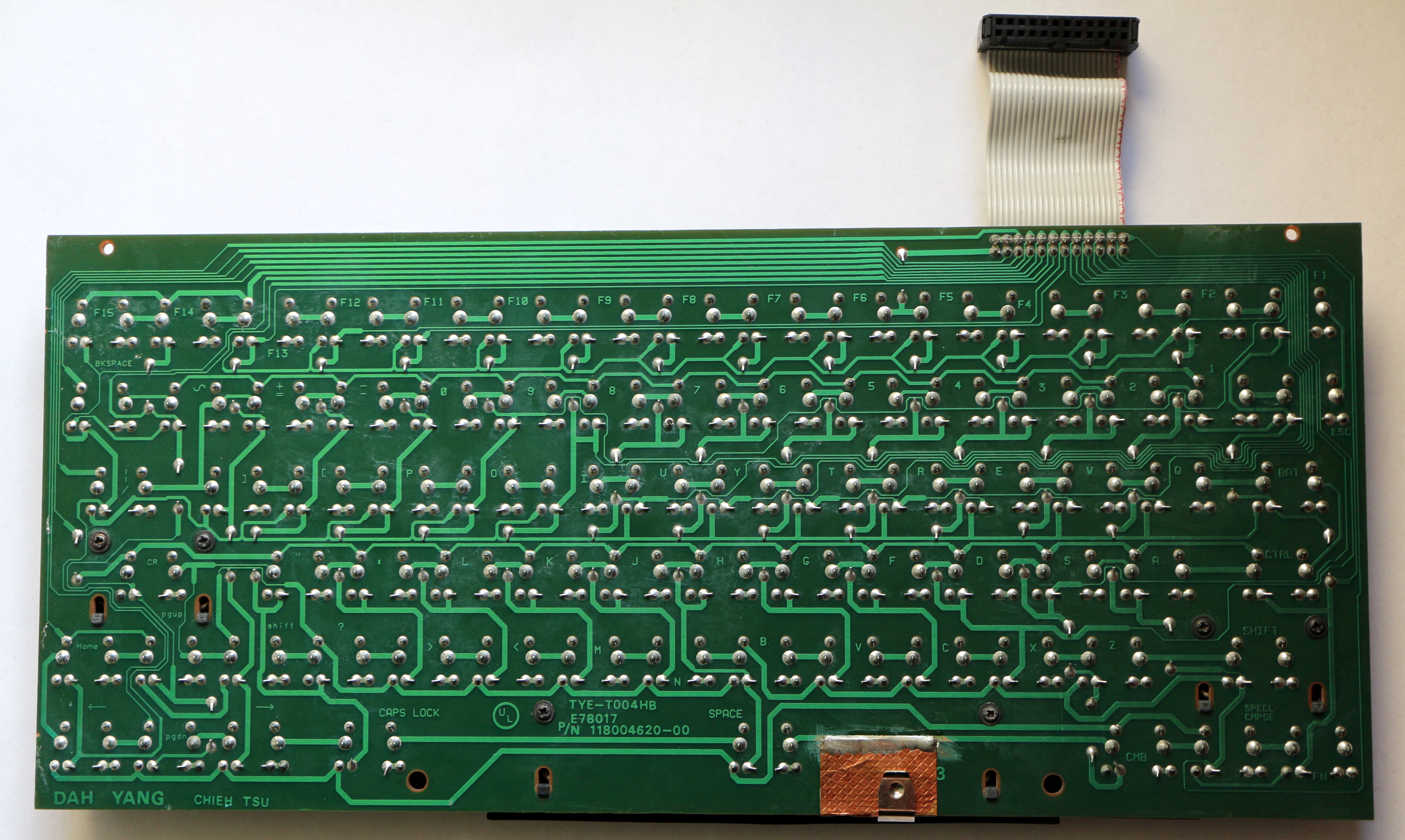

Data General Walkabout Keyboard (back)

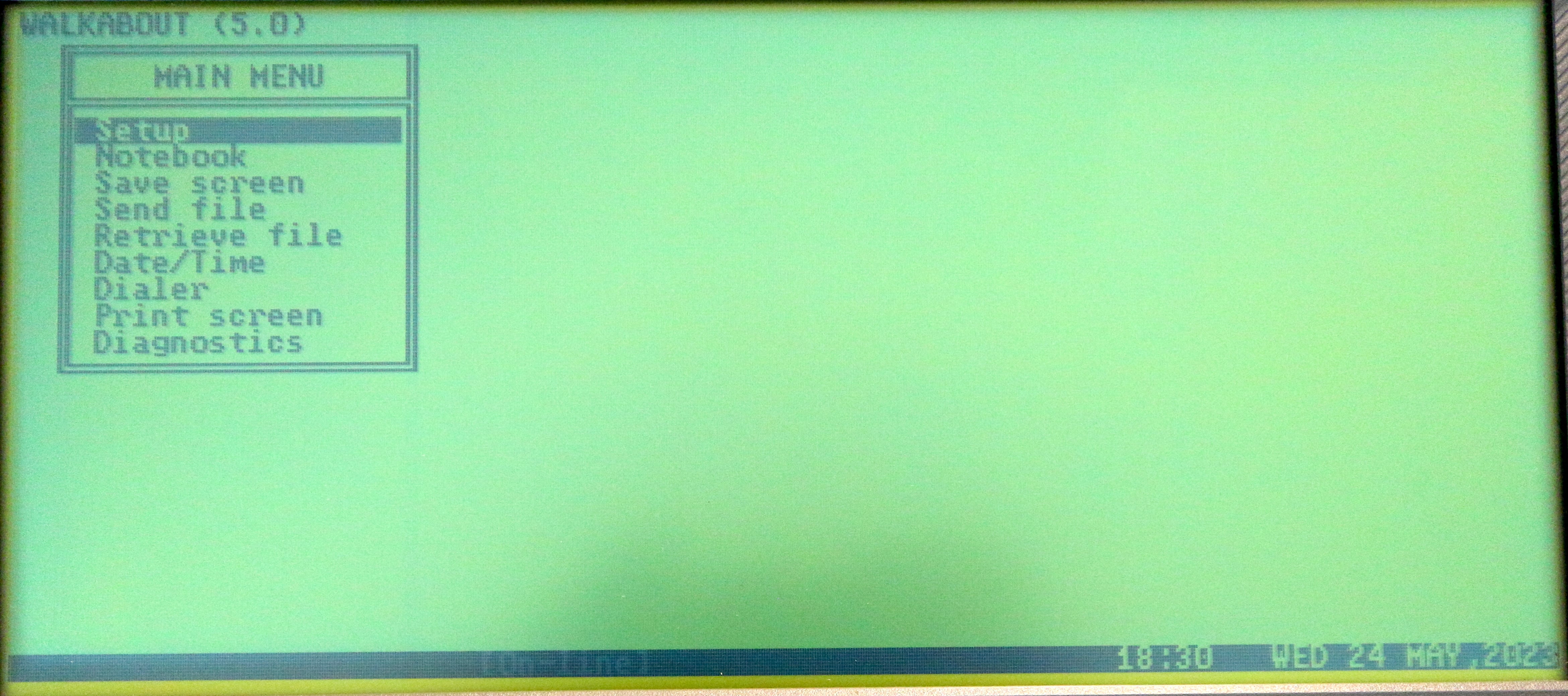

Data General Walkabout Main Menu Apart from being a terminal, this thing has a few extras available.

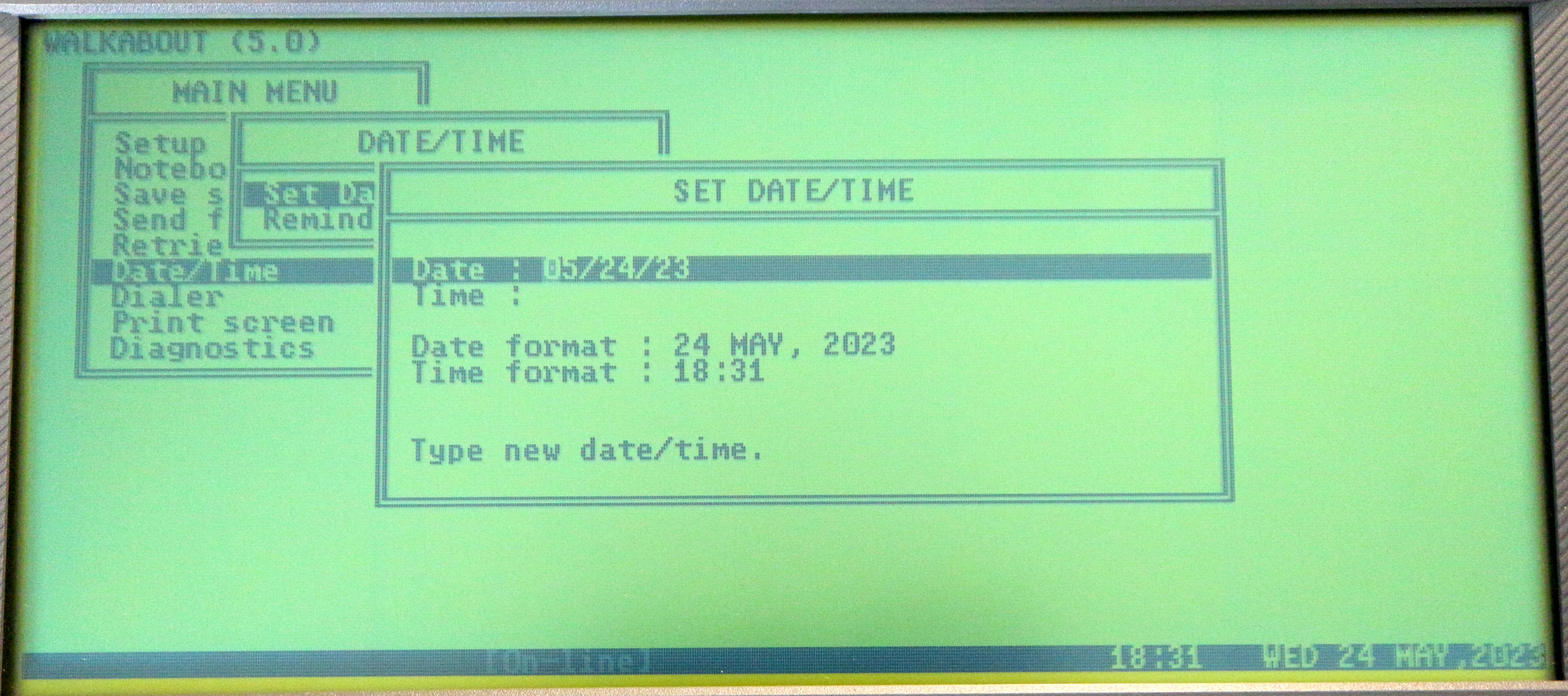

Data General Walkabout Set Date/Time Menu

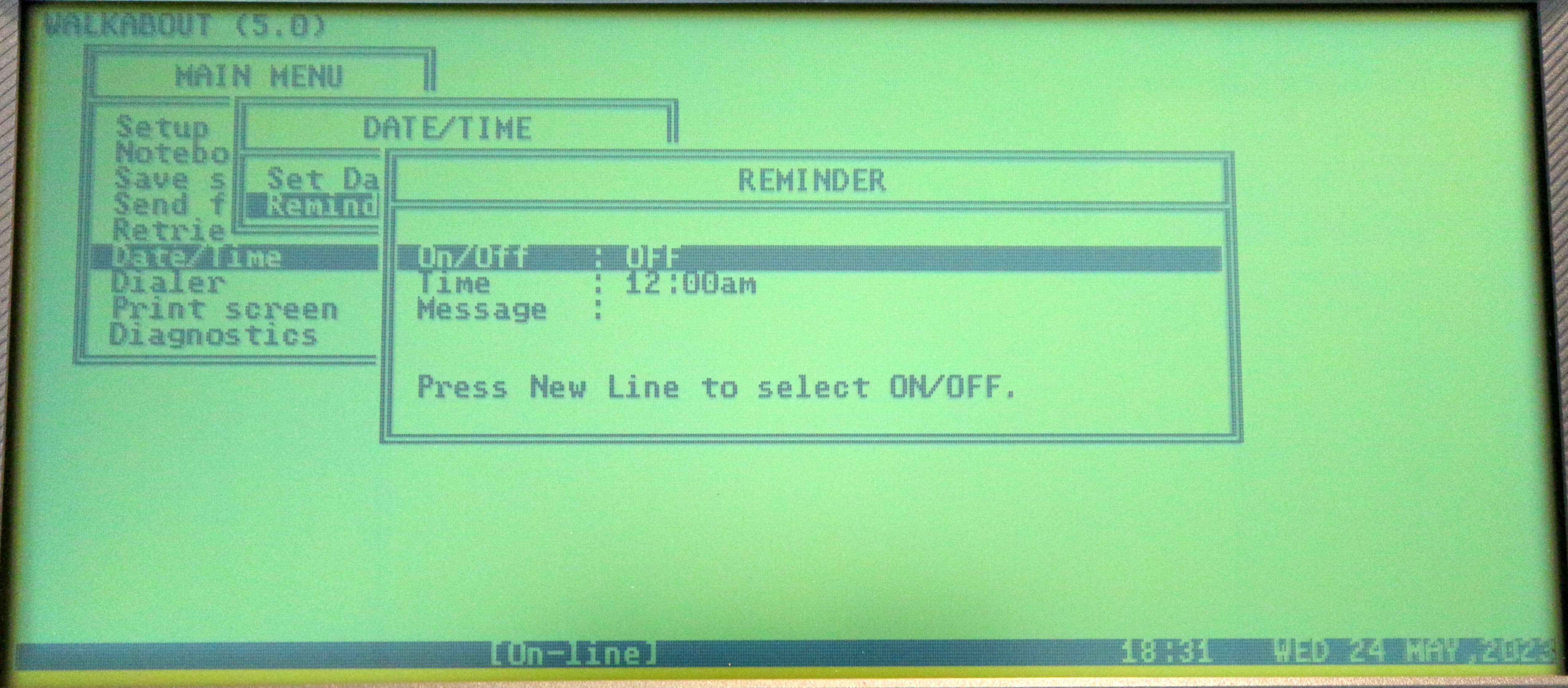

Data General Walkabout Reminder Menu

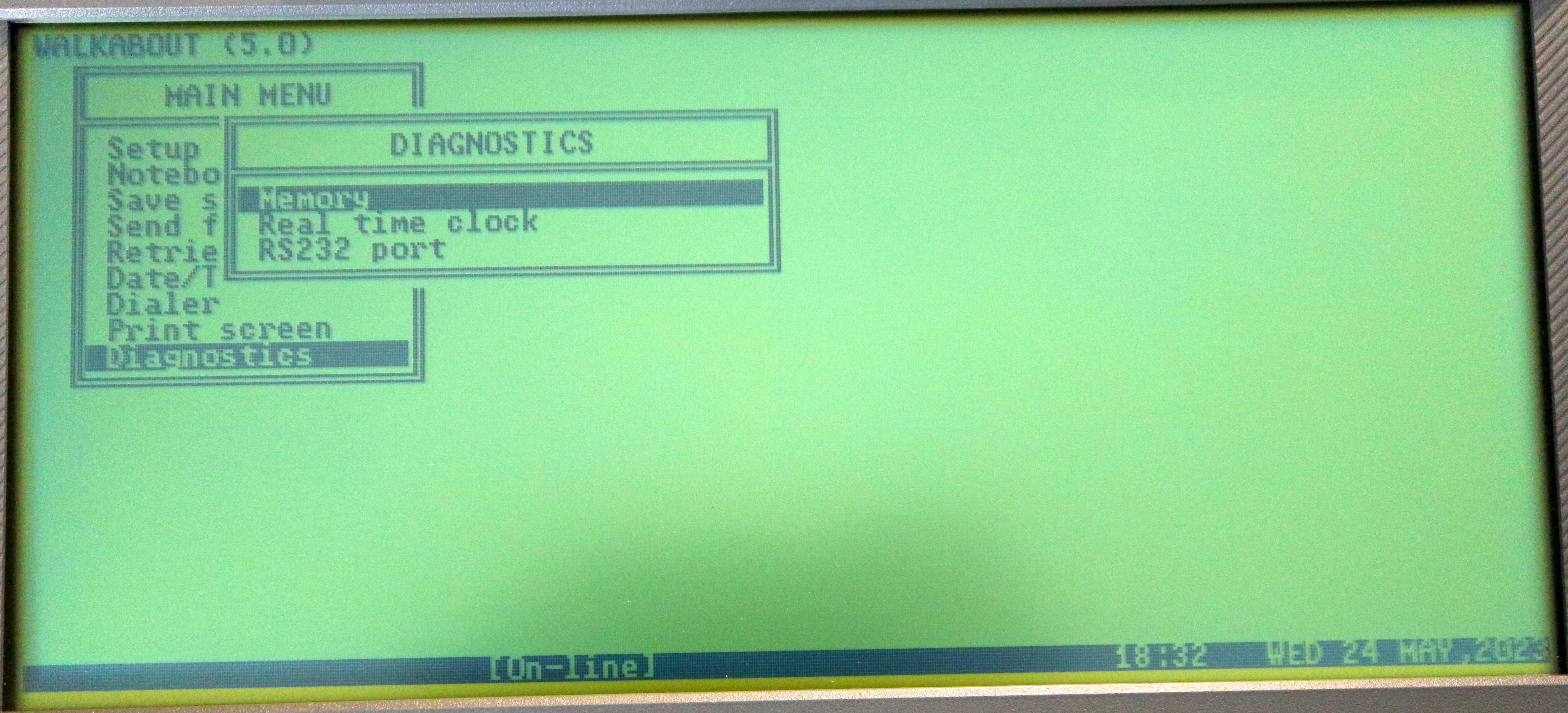

Data General Walkabout Diagnostics Menu
