HP 9830A

The Hewlett-Packard 9830A is a rather interesting desktop "calculator" from 1972 (it is actually a computer, but was marketed as a calculator to make it easier to buy for large companies that have been taken over by bureaucrats, as buying a computer at that time was seen as a big deal).

It has a 32-character red alphanumeric LED display, a full keyboard with 10 programmable function keys, and a digital cassette tape drive, which takes standard audio cassettes and holds about 35000 words of data (~70kB) per cassette. Audio cassettes that are specified at up to 60 minutes in length and have a white or transparent case are most reliable (these case colors make it easier for the tape drive to detect the transparent bits of tape that are at the ends of the tape). CrO₂ magnetic tape material works well.

Its processor architecture is based on the 16-bit HP 2100-series minicomputers, but implemented in a bit-serial way (the processor's ALU only processes 1 bit at a time instead of 16, which makes it slower, but requires fewer transistors to implement and is therefore cheaper). The processor's frequency is 8MHz and can execute about 75kIPS.

The machine runs a pretty featureful version of BASIC, which can be additionally expanded with plug-in ROM modules (to add e.g. matrix operations, plotter control, etc.).

The 9830A was usually paired with a 9866A thermal printer, which could only print characters (upper-case, 5x7 dot matrix, 80 characters per line), but at 240 lines per minute. You can use standard fax machine paper rolls in this printer.

The calculator itself weighs 20kg and the thermal printer 17kg. Not only is it built like a tank, it also weighs like one!

As for the power consumption, the calculator on its own uses about 90-105W when idling, the printer on its own 80-95W, and both together about 170-225W. The power factor is pretty decent — a steady 0.76.

My HP 9830A has 7904 words of memory (maximum possible, ~16kB), a 9866A thermal printer, a 9862A plotter, and a 9865A external cassette tape drive. It's still fully functional after more than 45 years!

Pictures ^

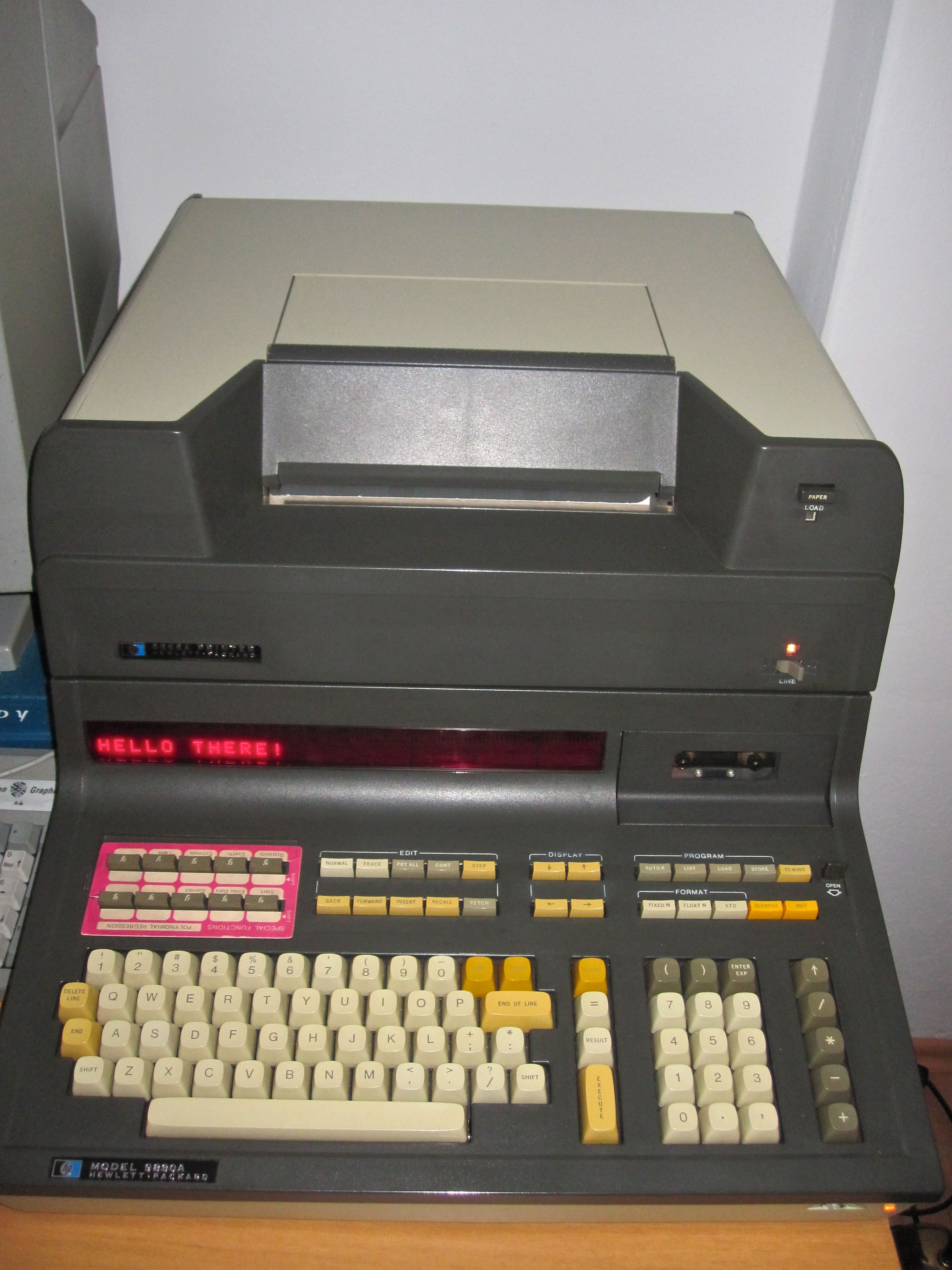

HP 9830A with 9866A thermal printer

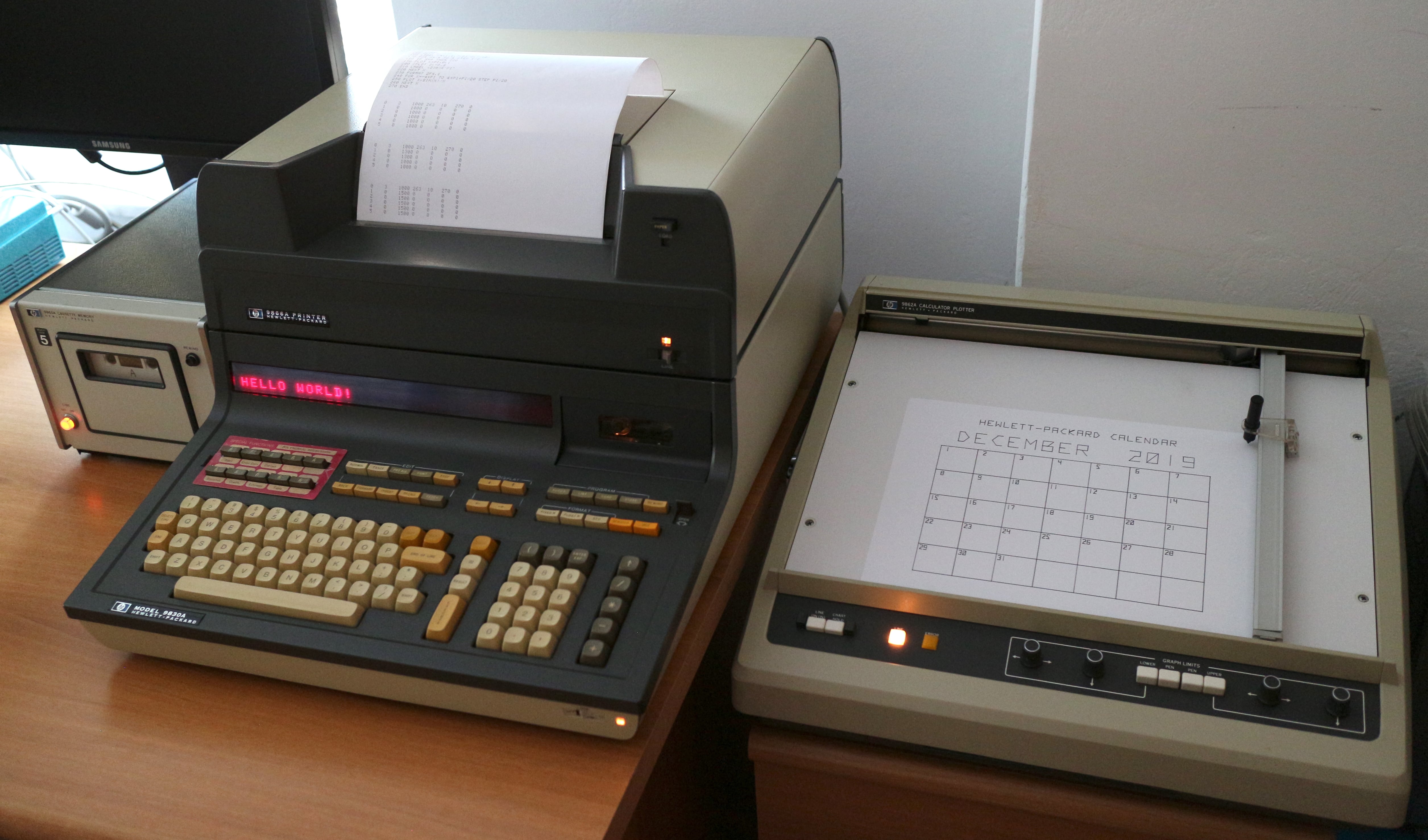

HP 9830A with printer, plotter, and cassette drive

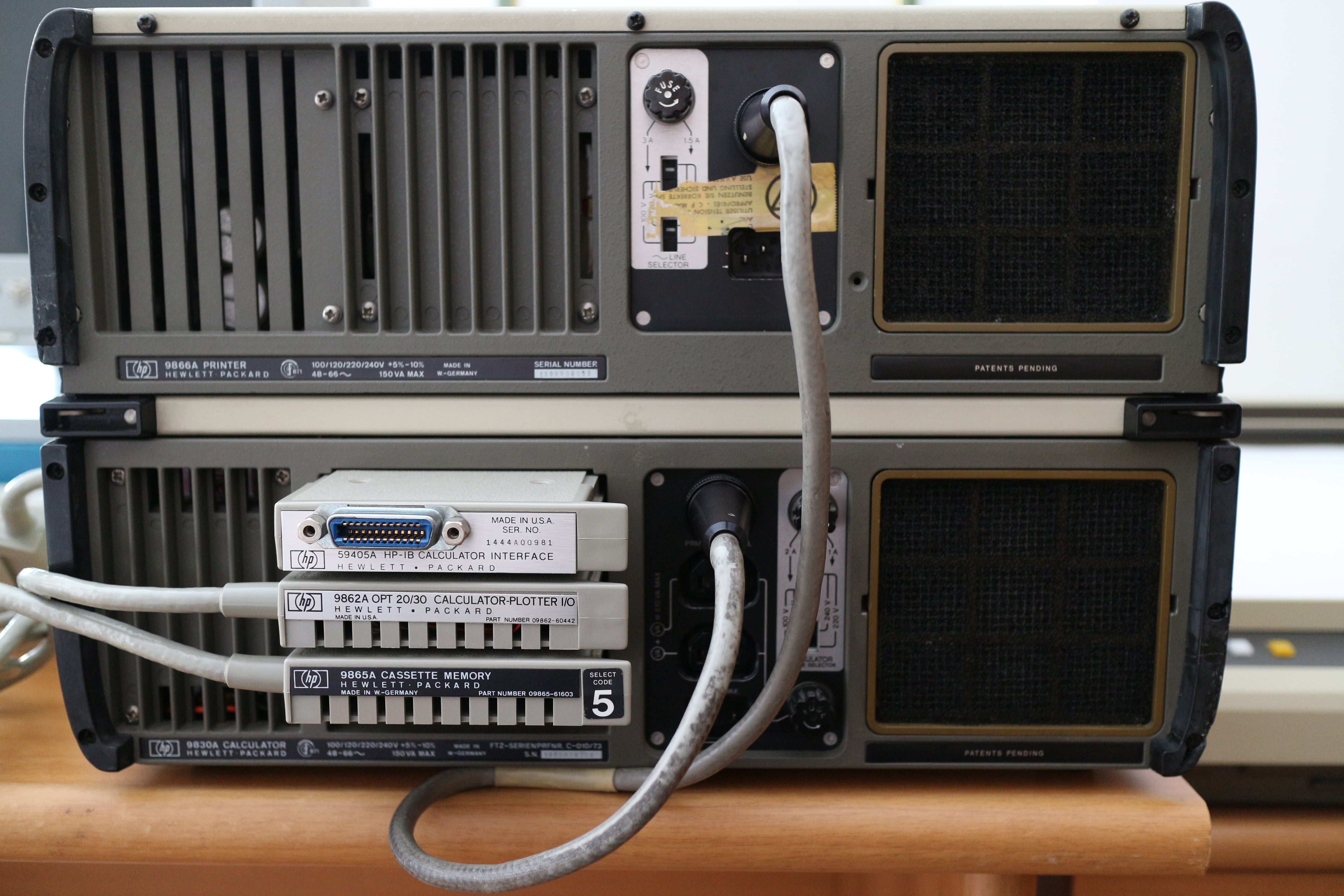

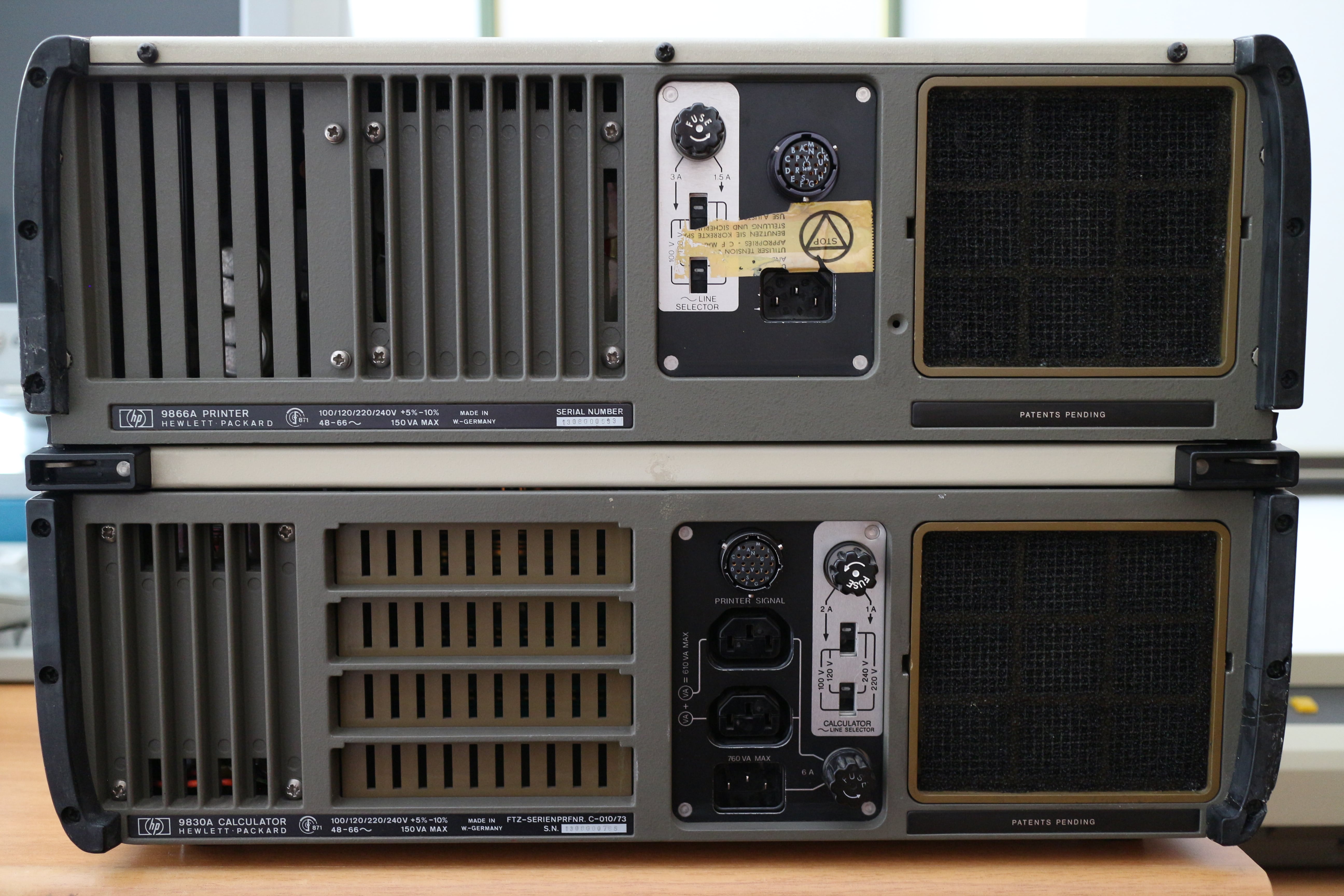

Back of the HP 9830A with 9866A printer on top
Back of the HP 9830A with 9866A printer on top

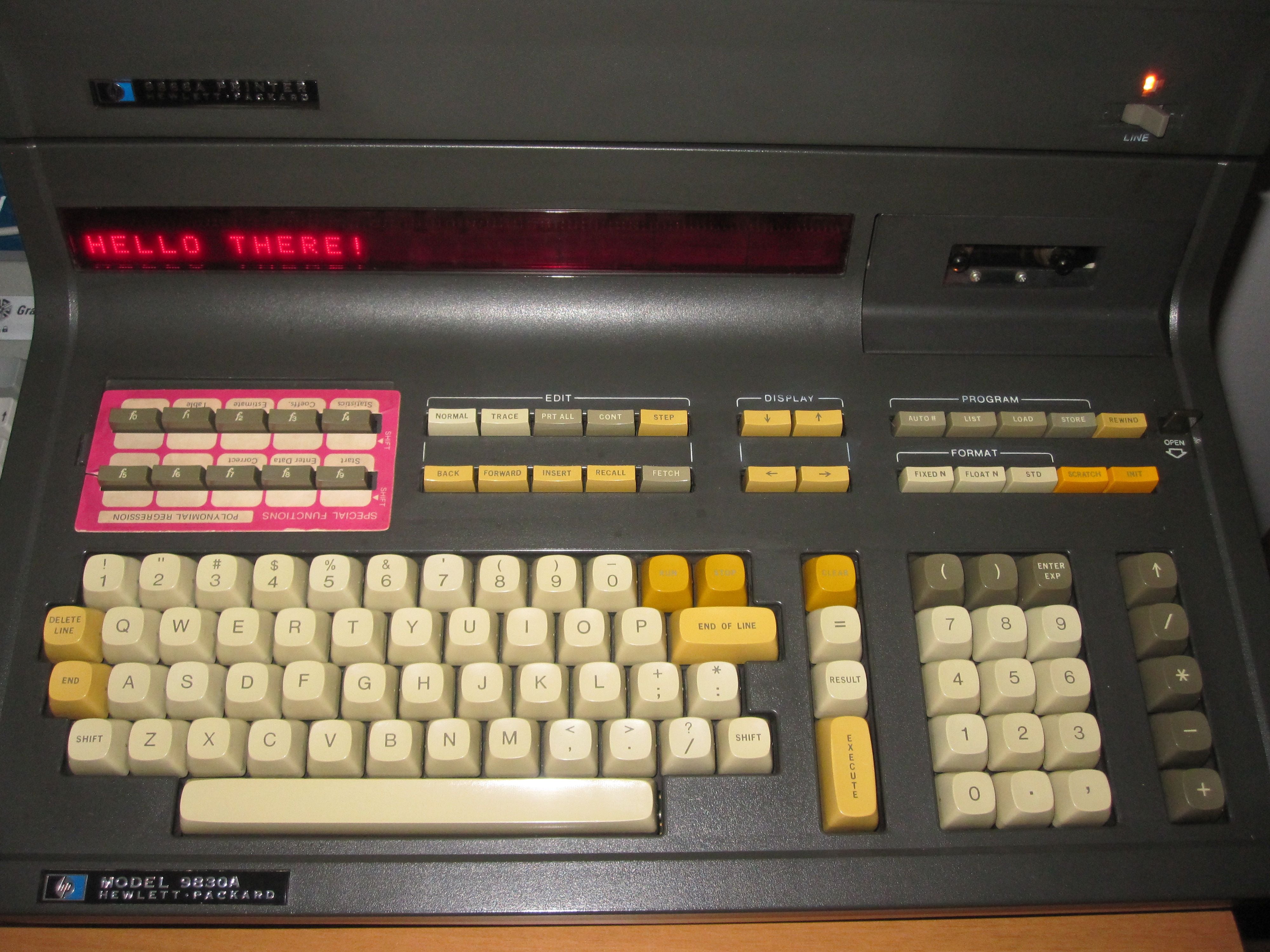

Close-up of the keyboard

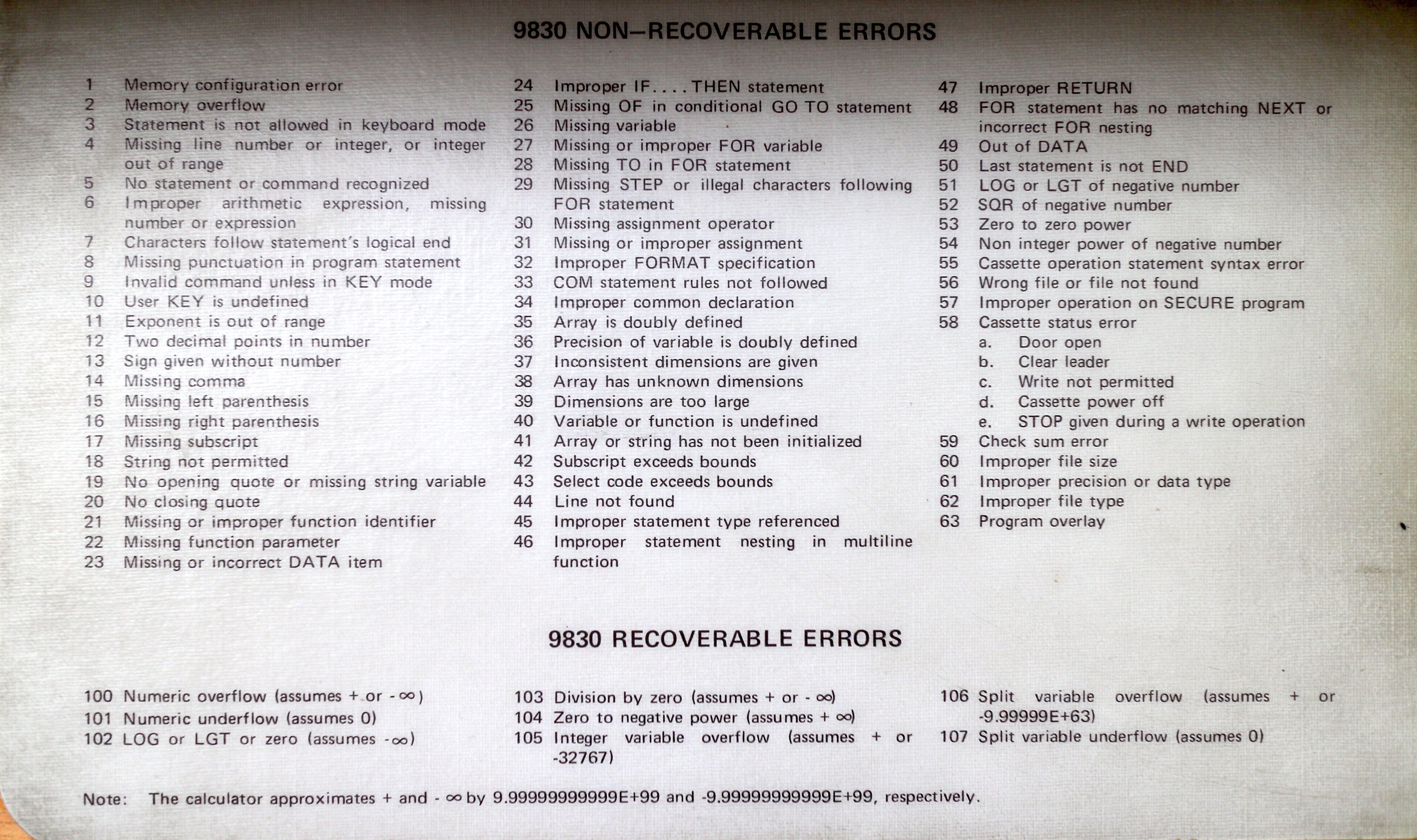

Pull-out tab with error codes

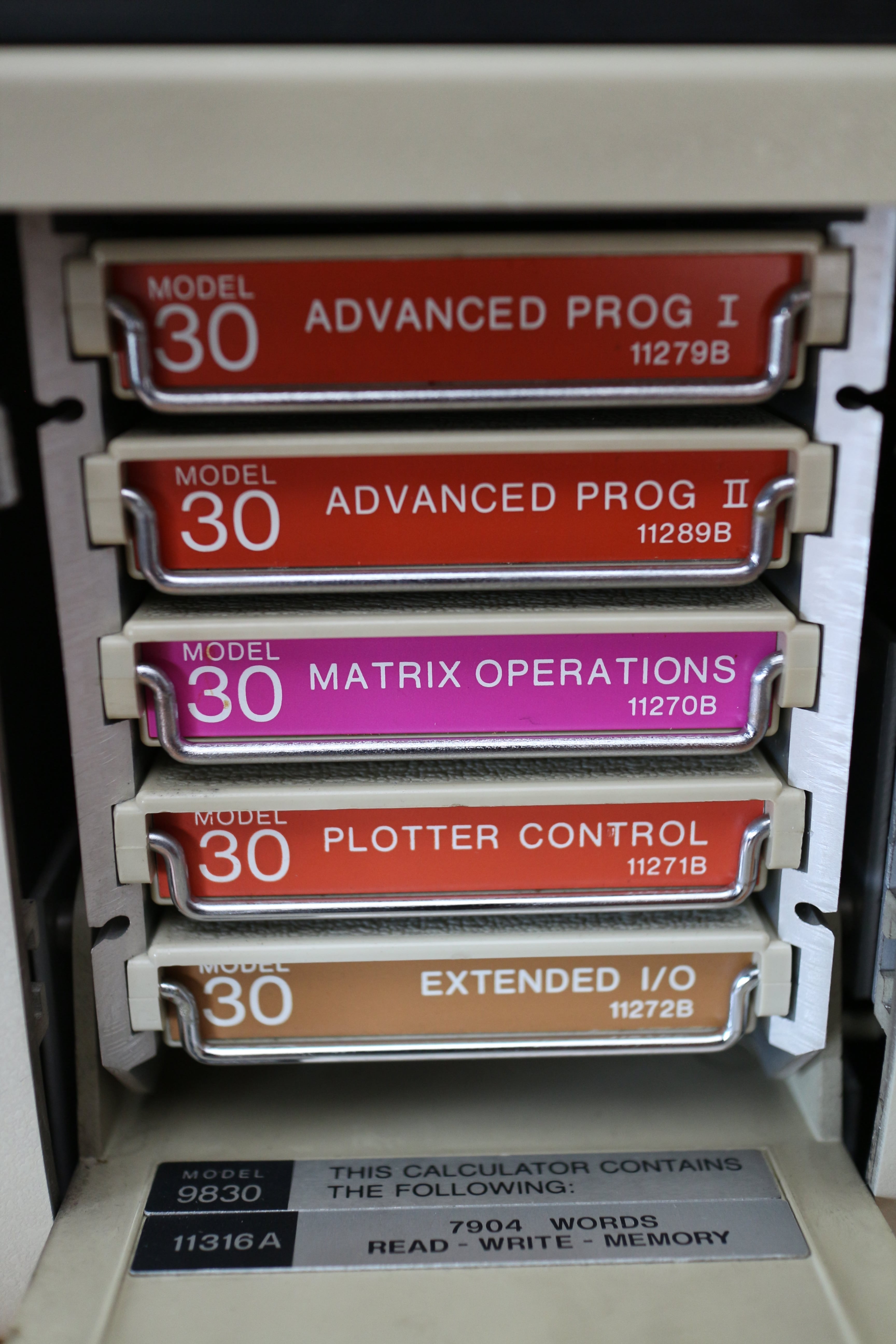

Installed ROM packs

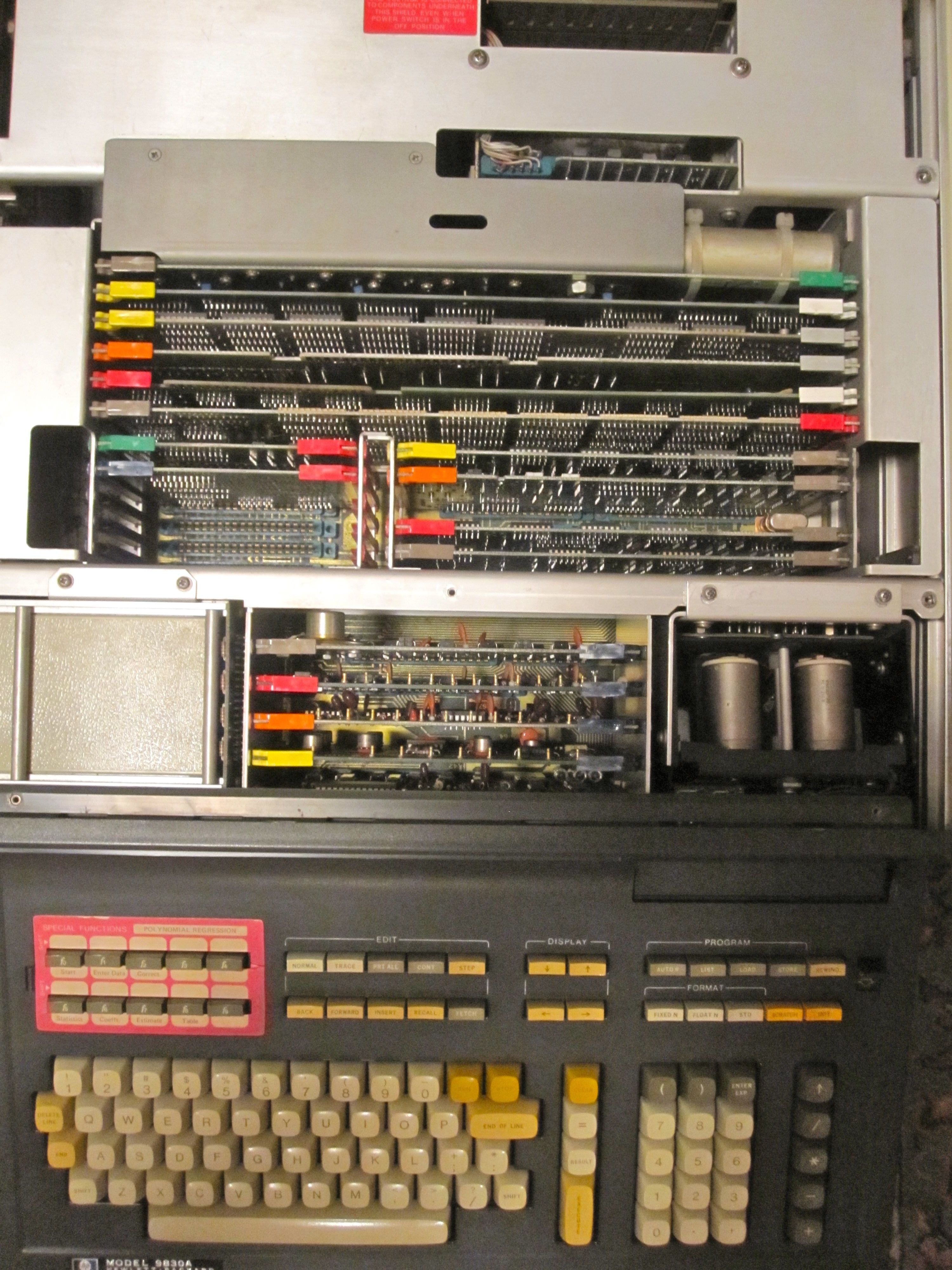

A top view of the boards inside

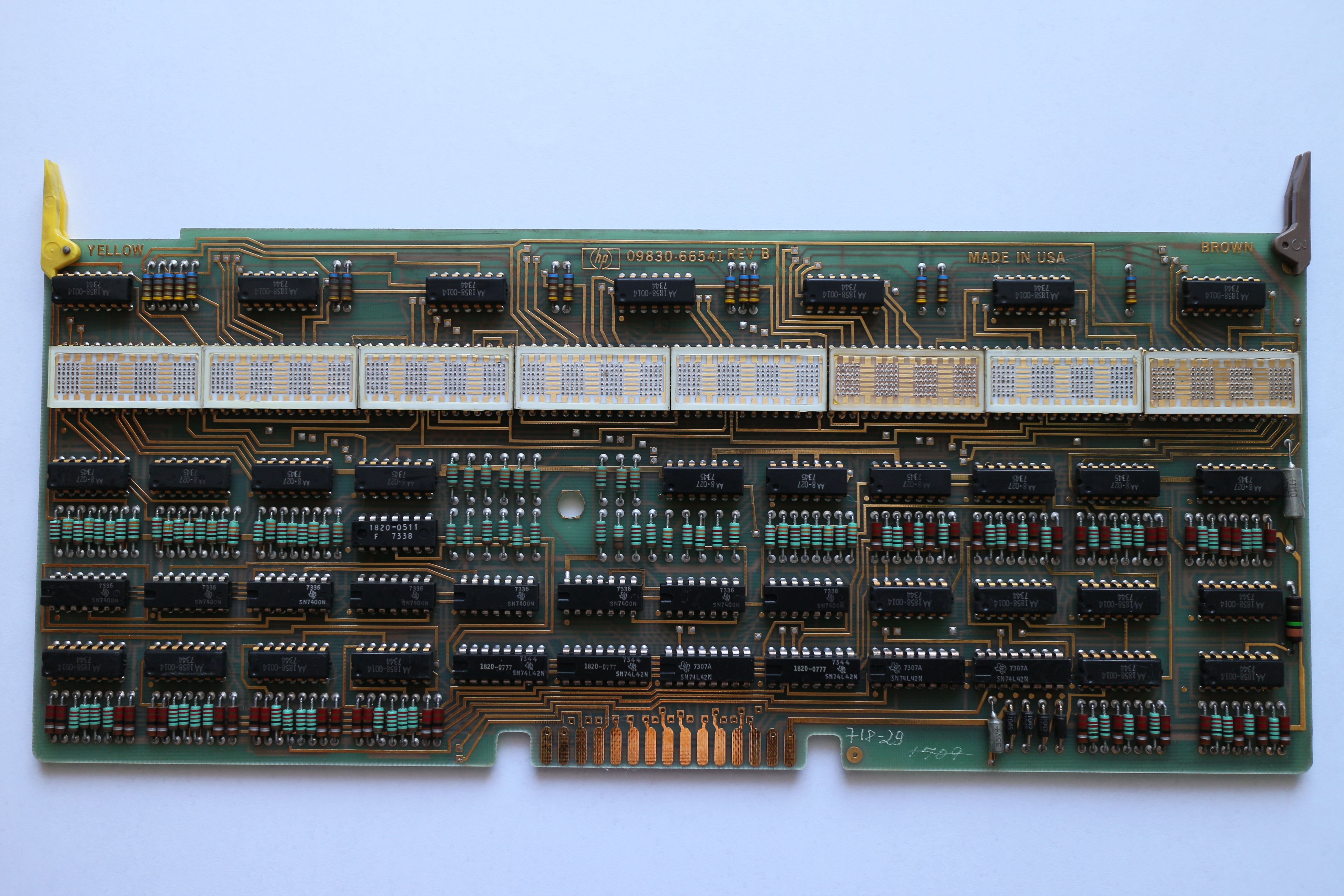

Display board (09830-66541)

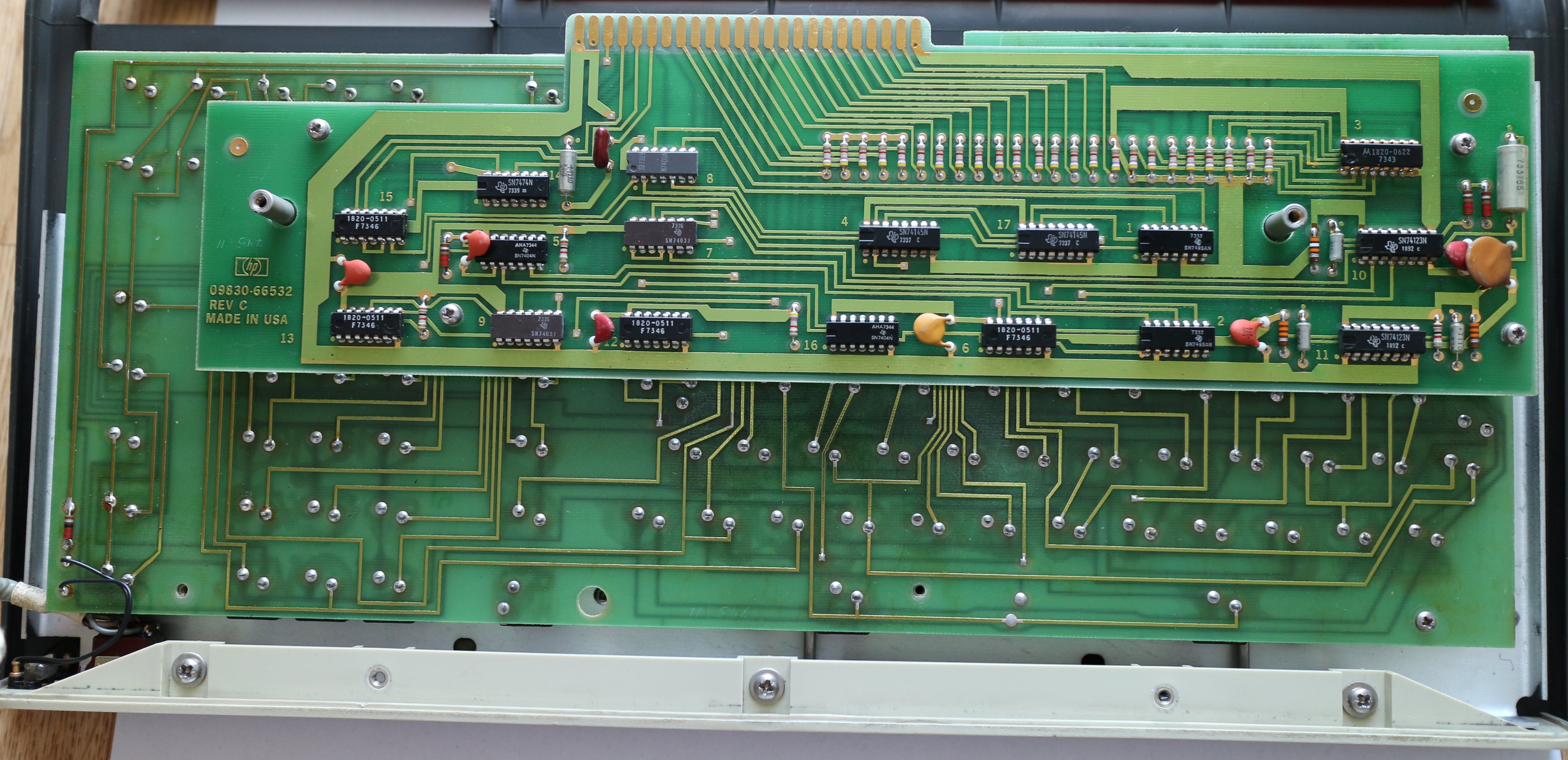

Keyboard interface board (09830-66532)

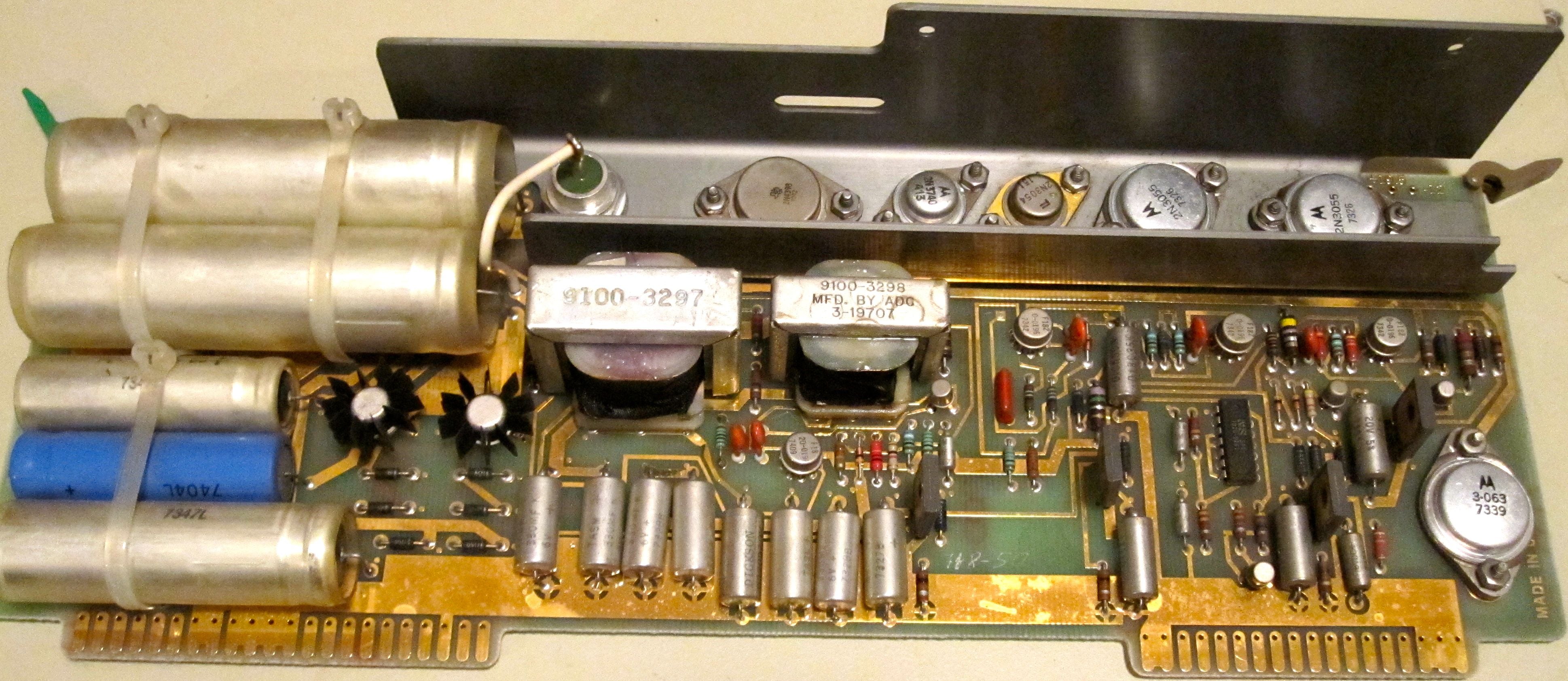

Power supply (09830-66551)

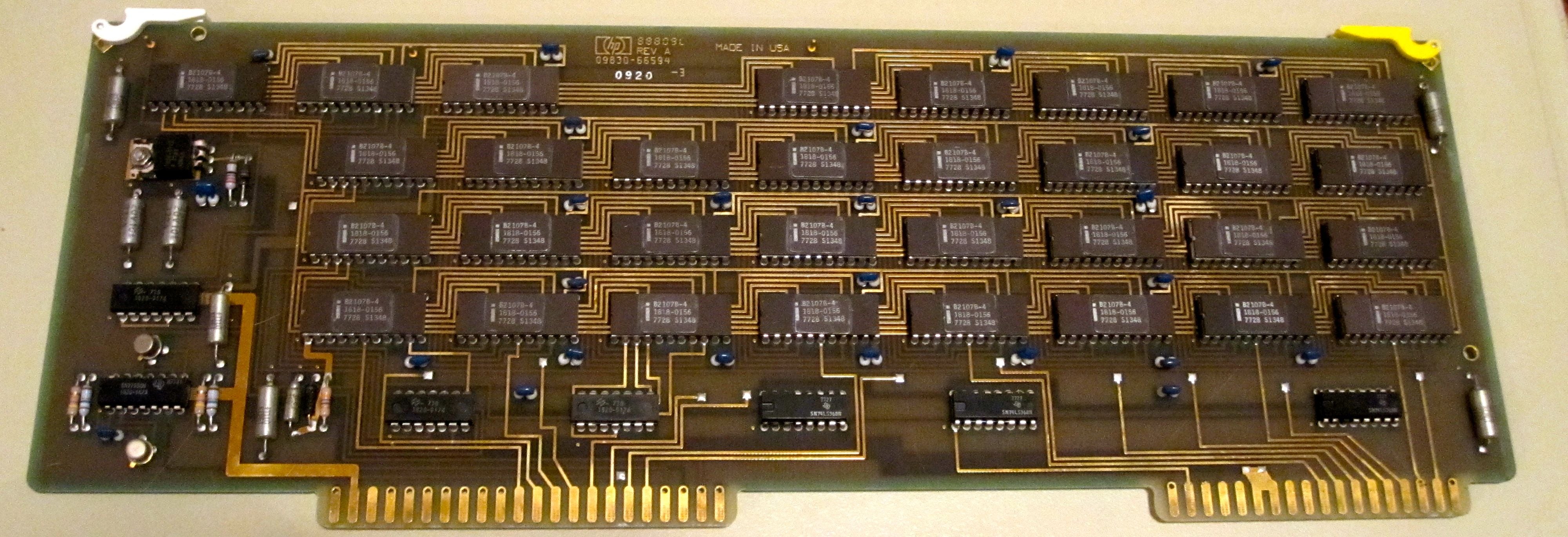

Standard memory board (09830-66584)

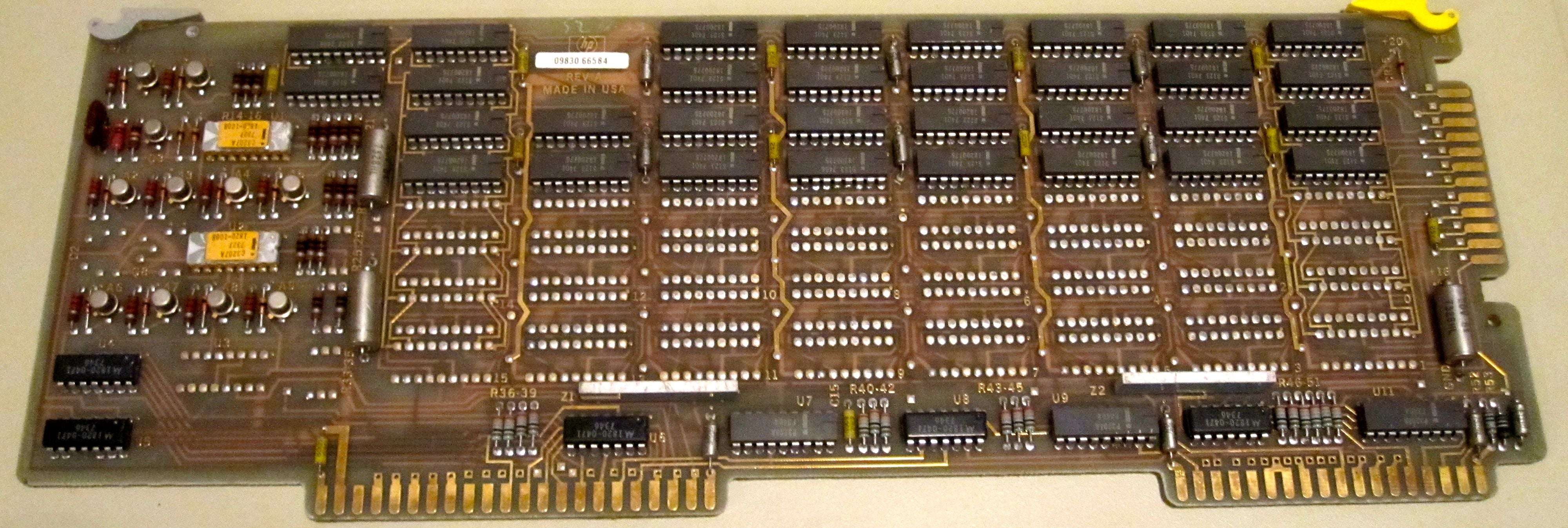

Memory expansion board (11275-66584)

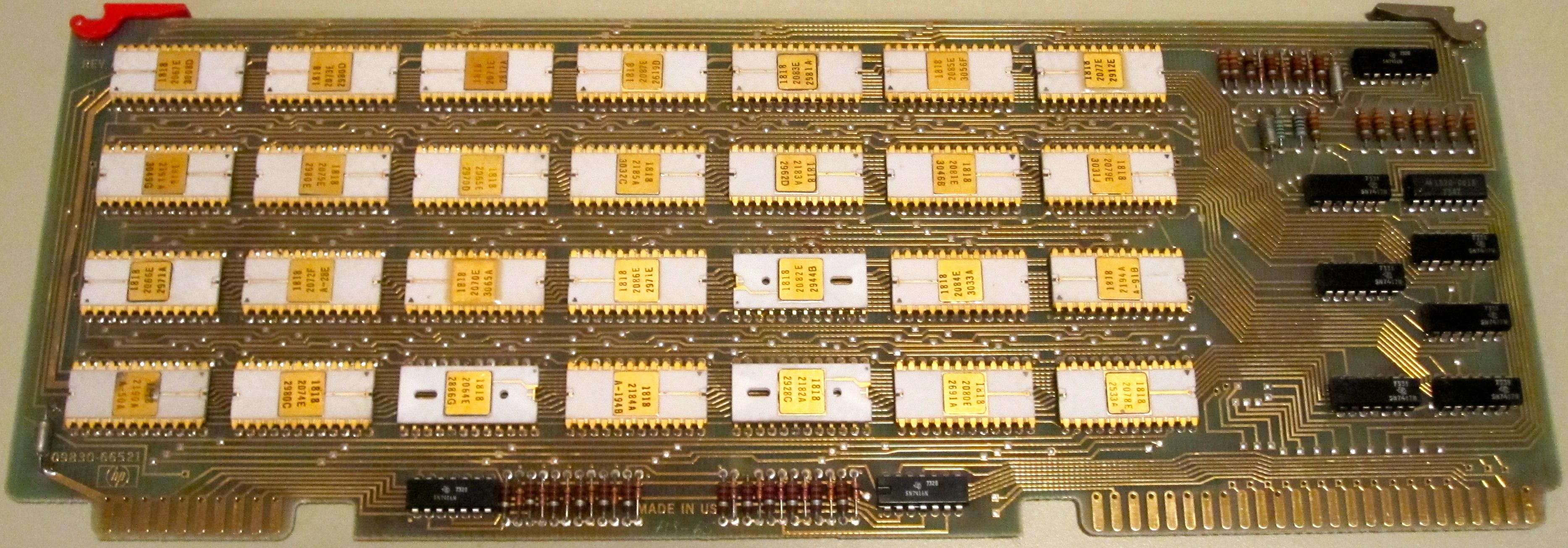

BASIC ROM card 1 (09830-66521)

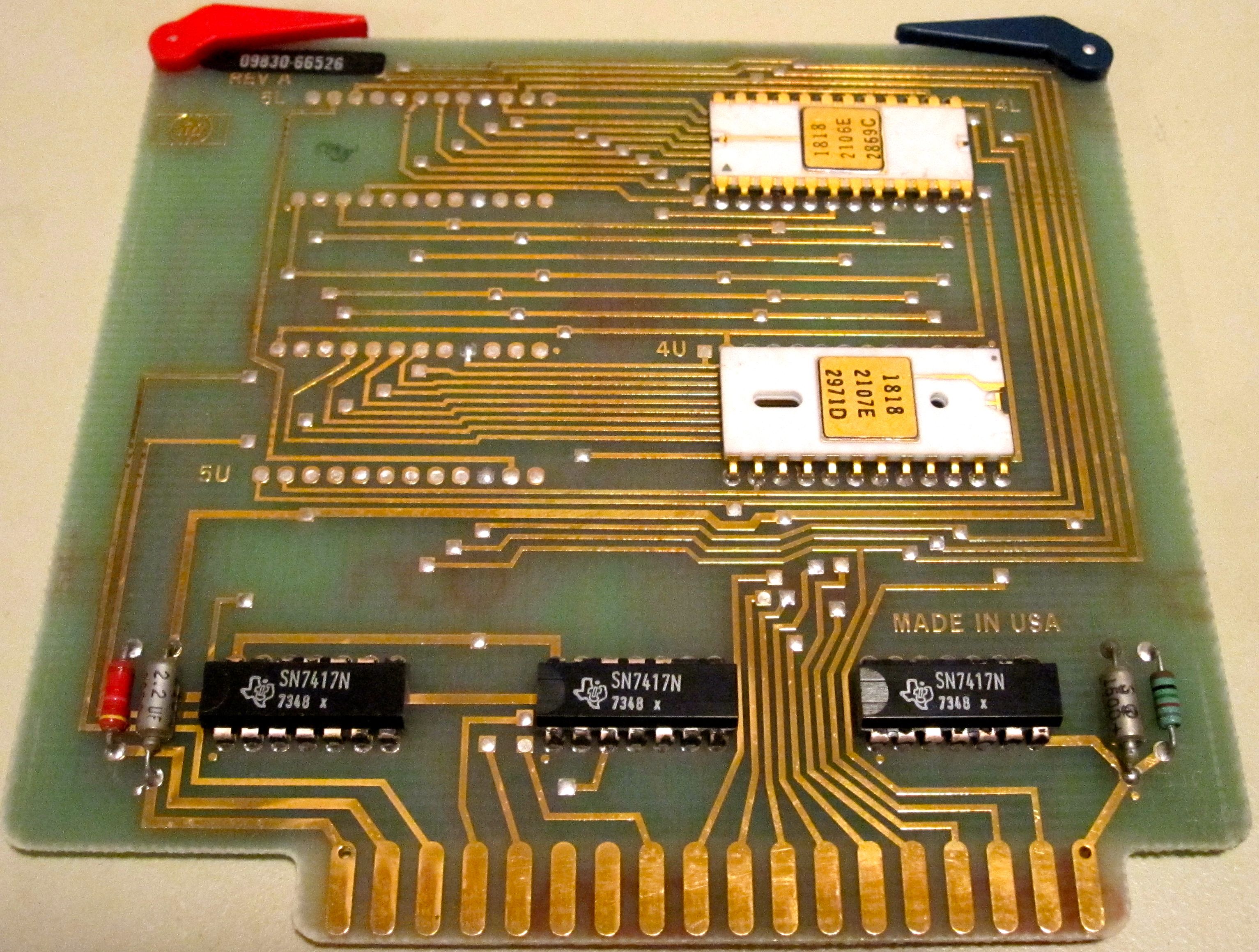

BASIC ROM card 2 (09830-66526)

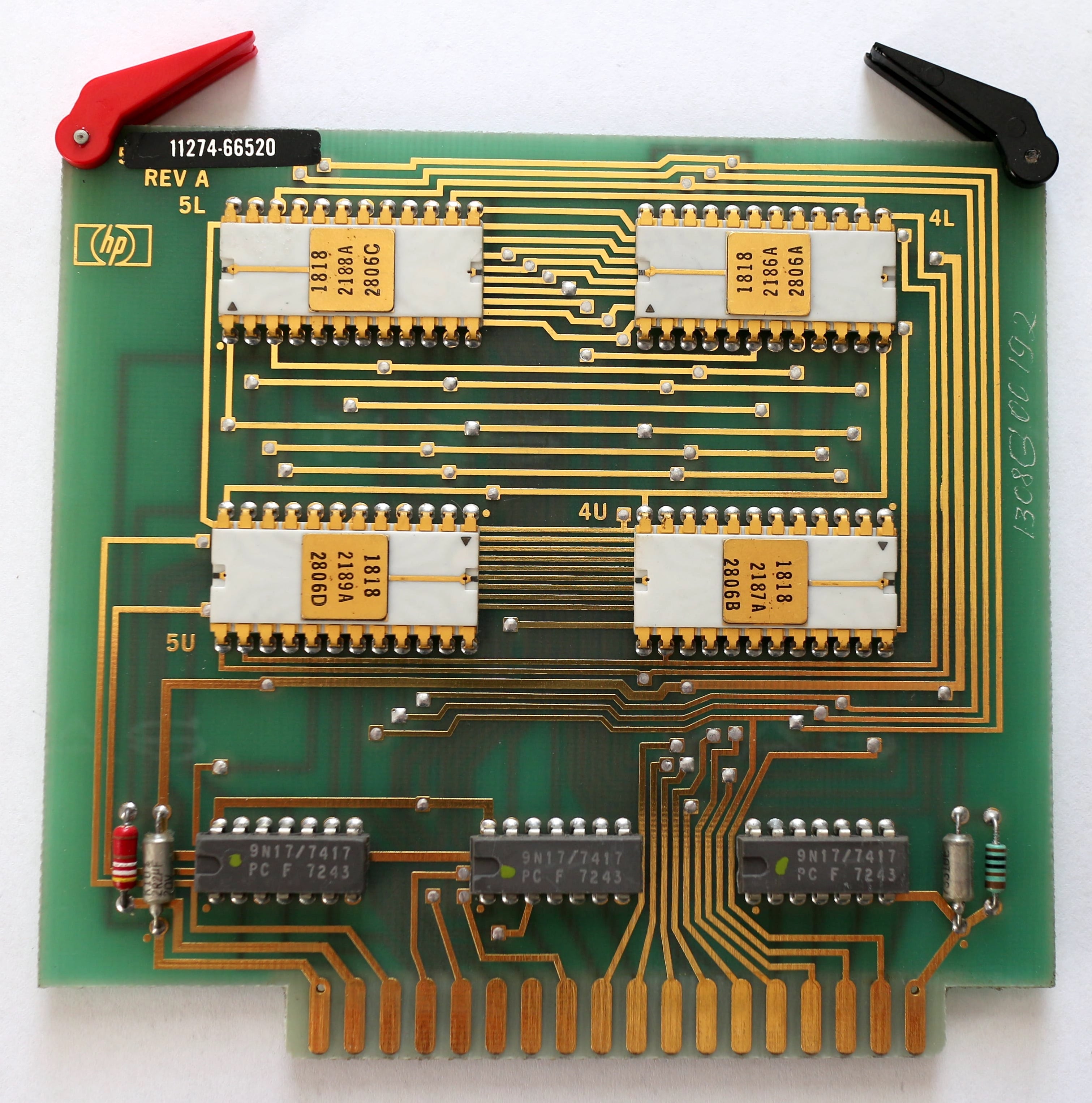

String Variables ROM card (11274-66520)

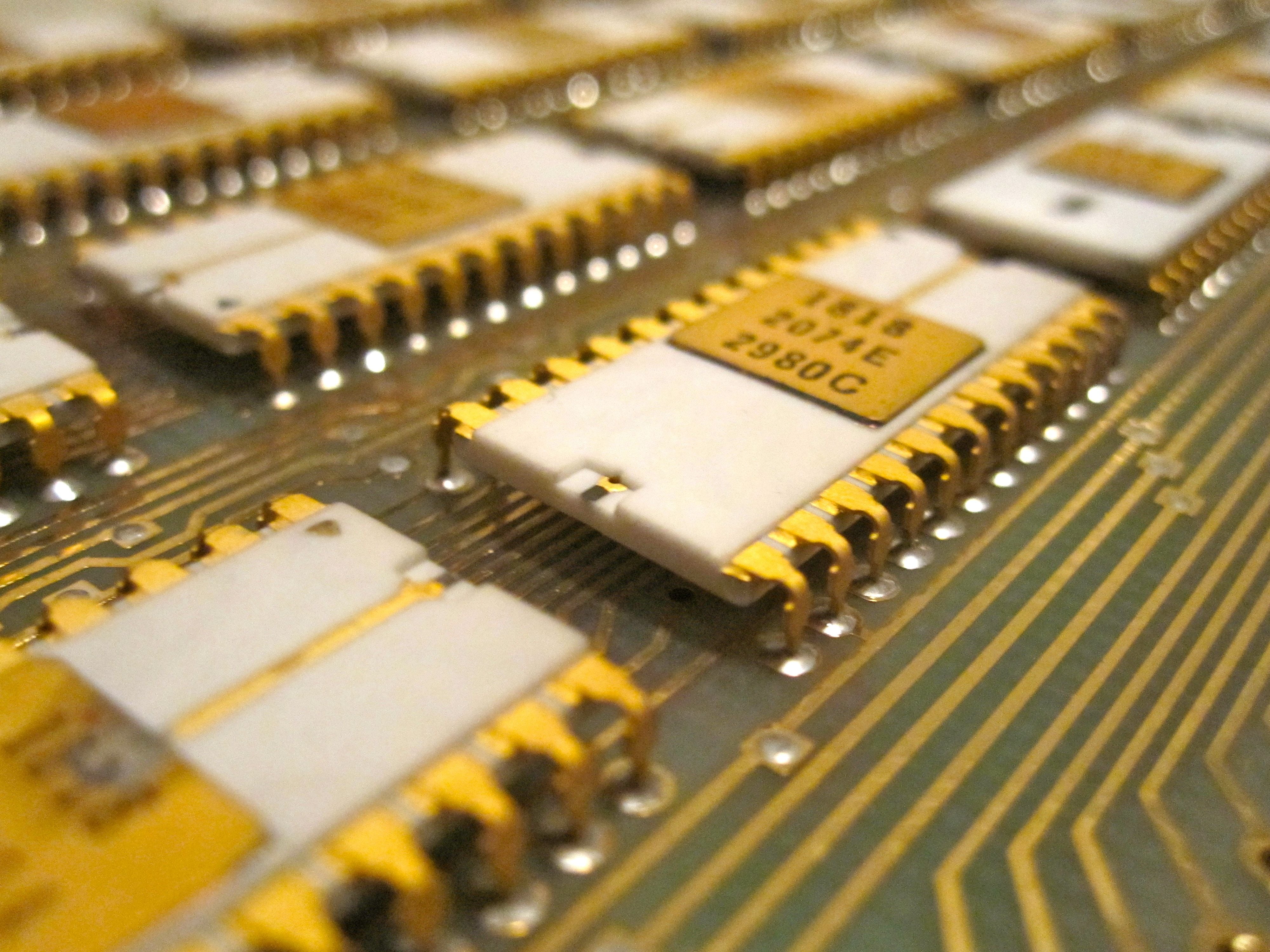

Close-up of the ROM chips

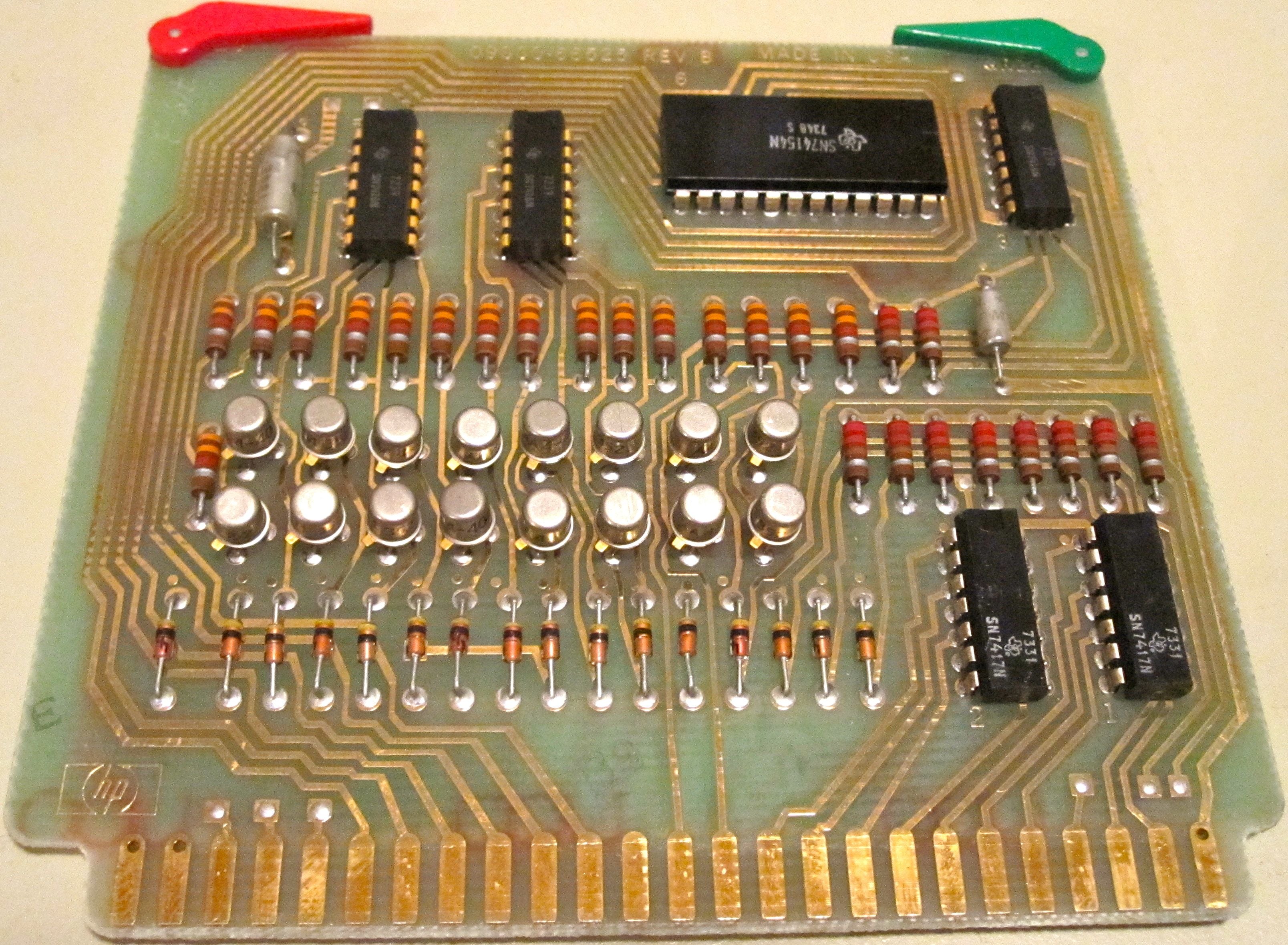

Extension ROM selector (09830-66525)

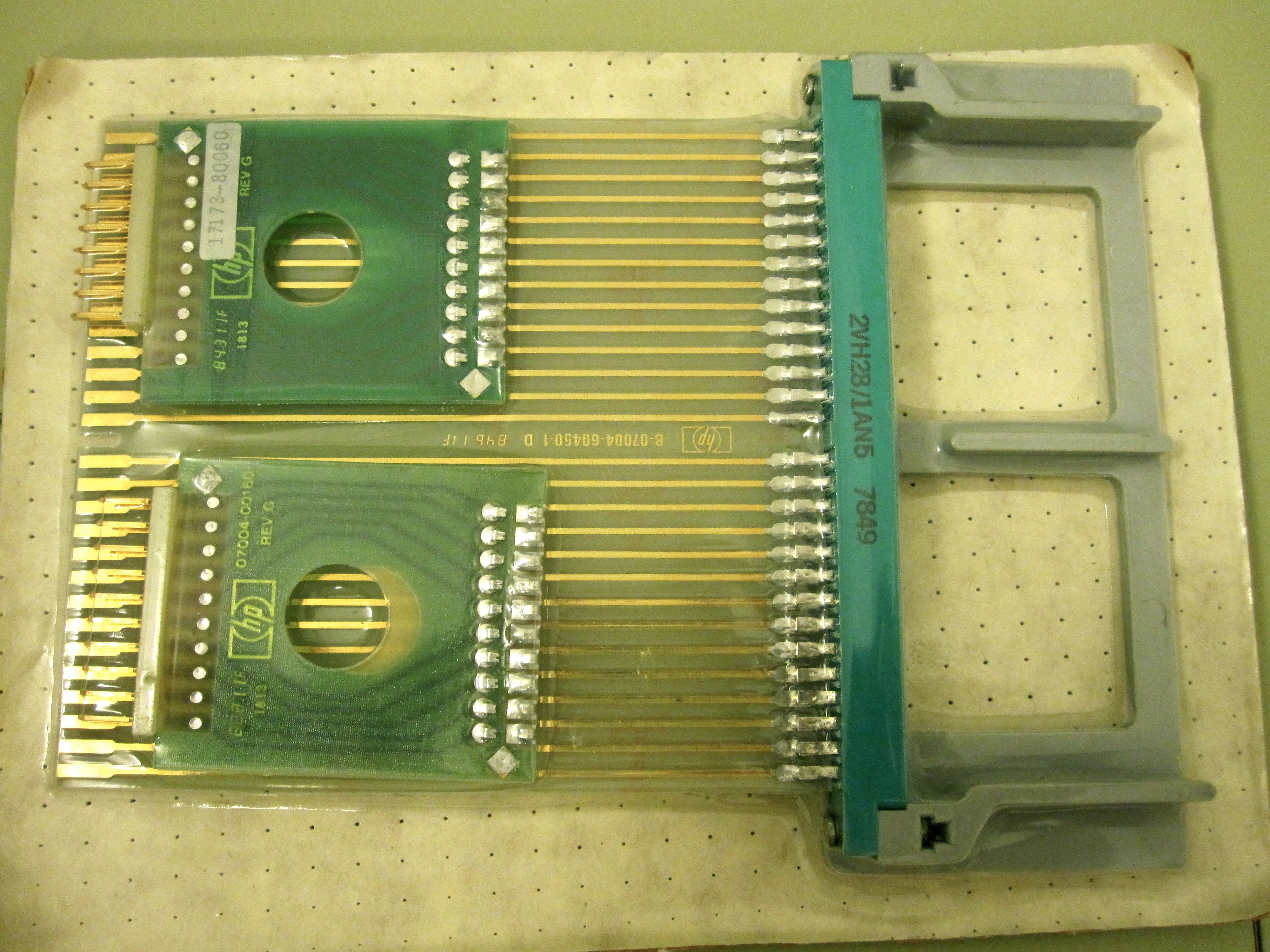

Extender card for debugging

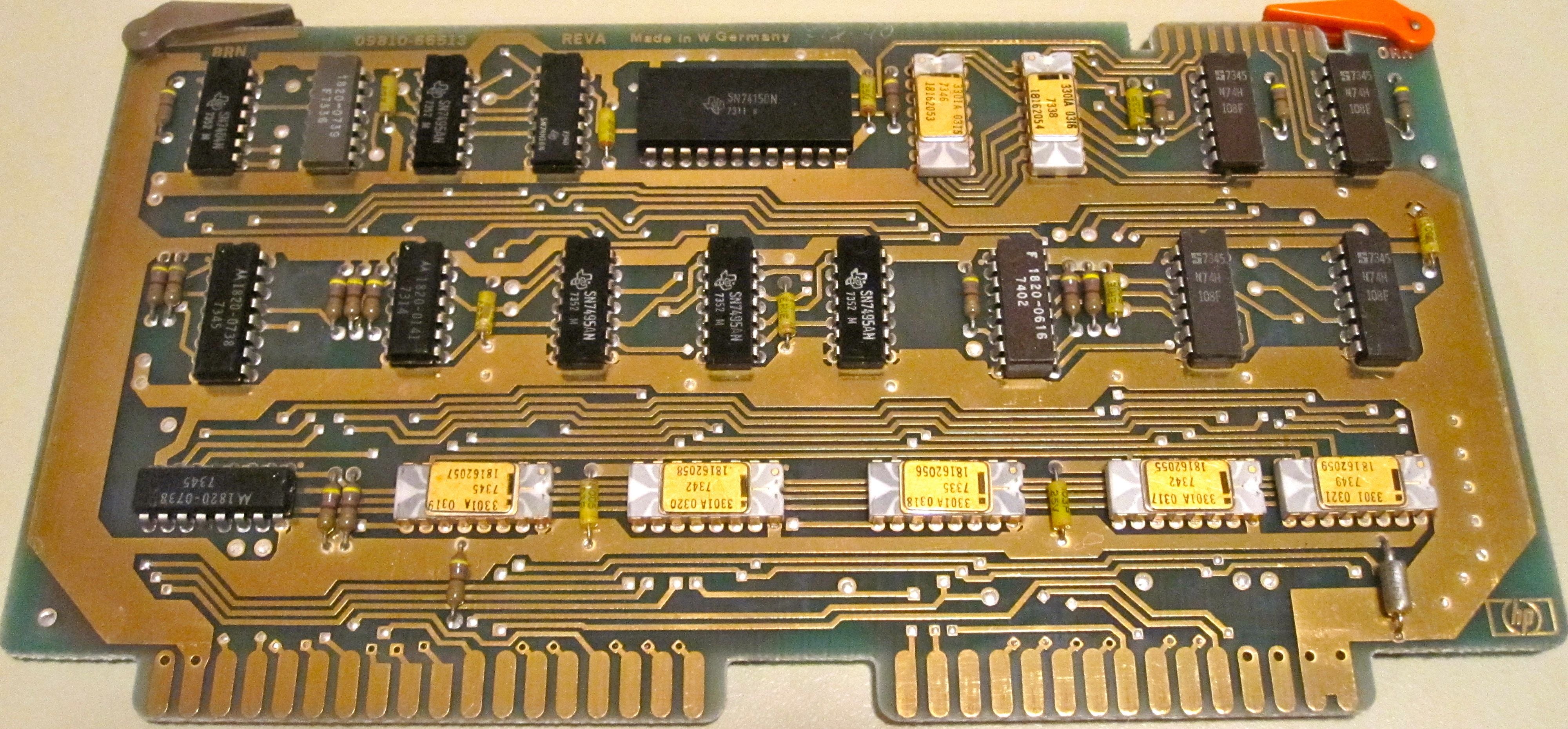

CPU control (09810-66513)

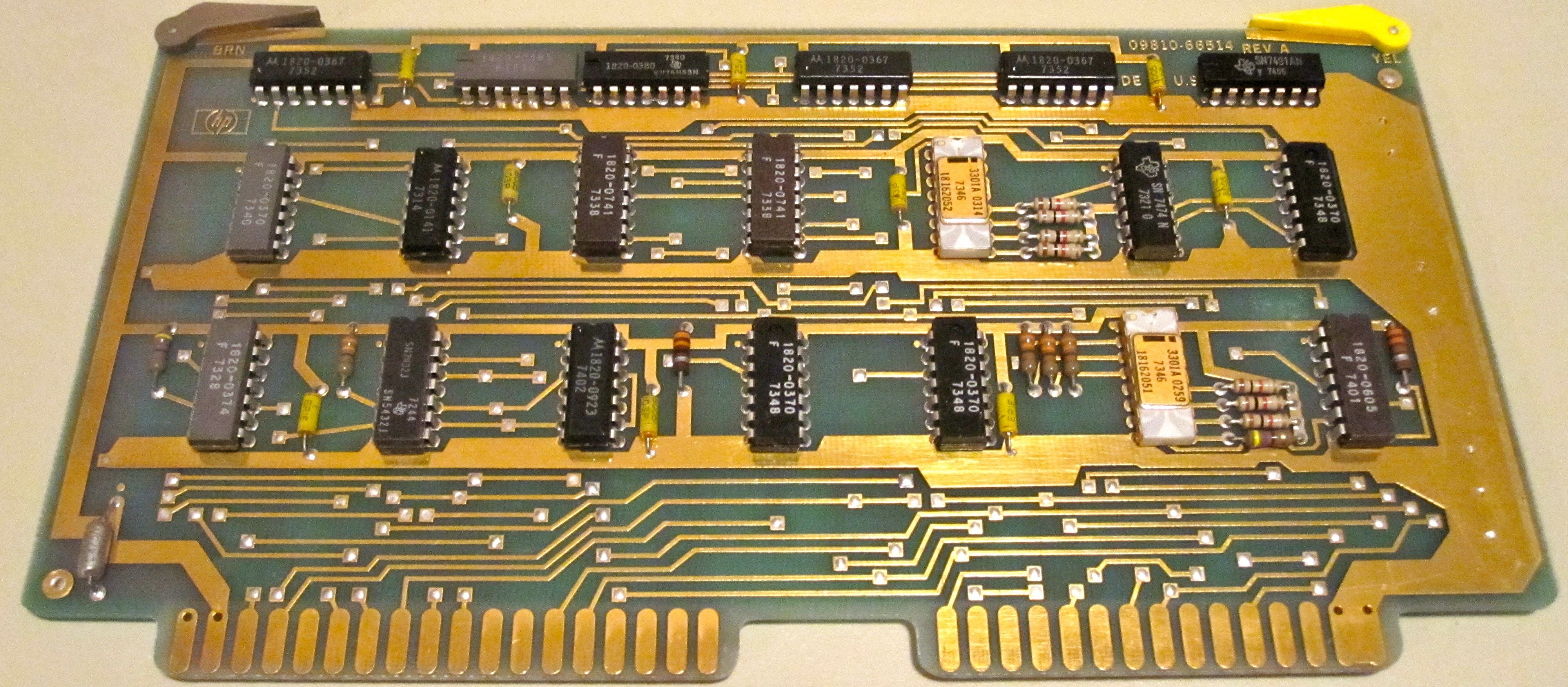

CPU data path (09810-66514)

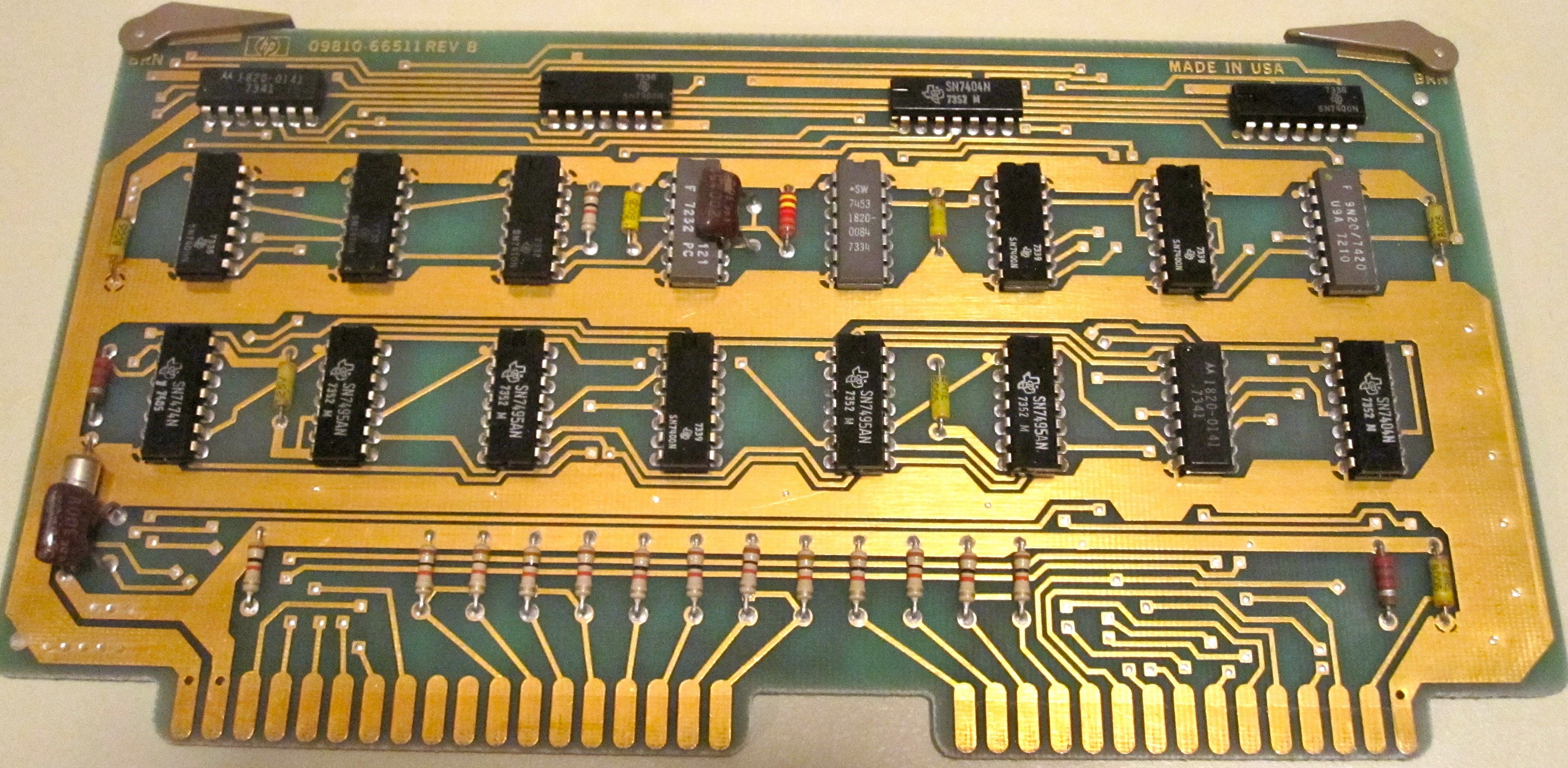

CPU I/O interface (09810-66511)

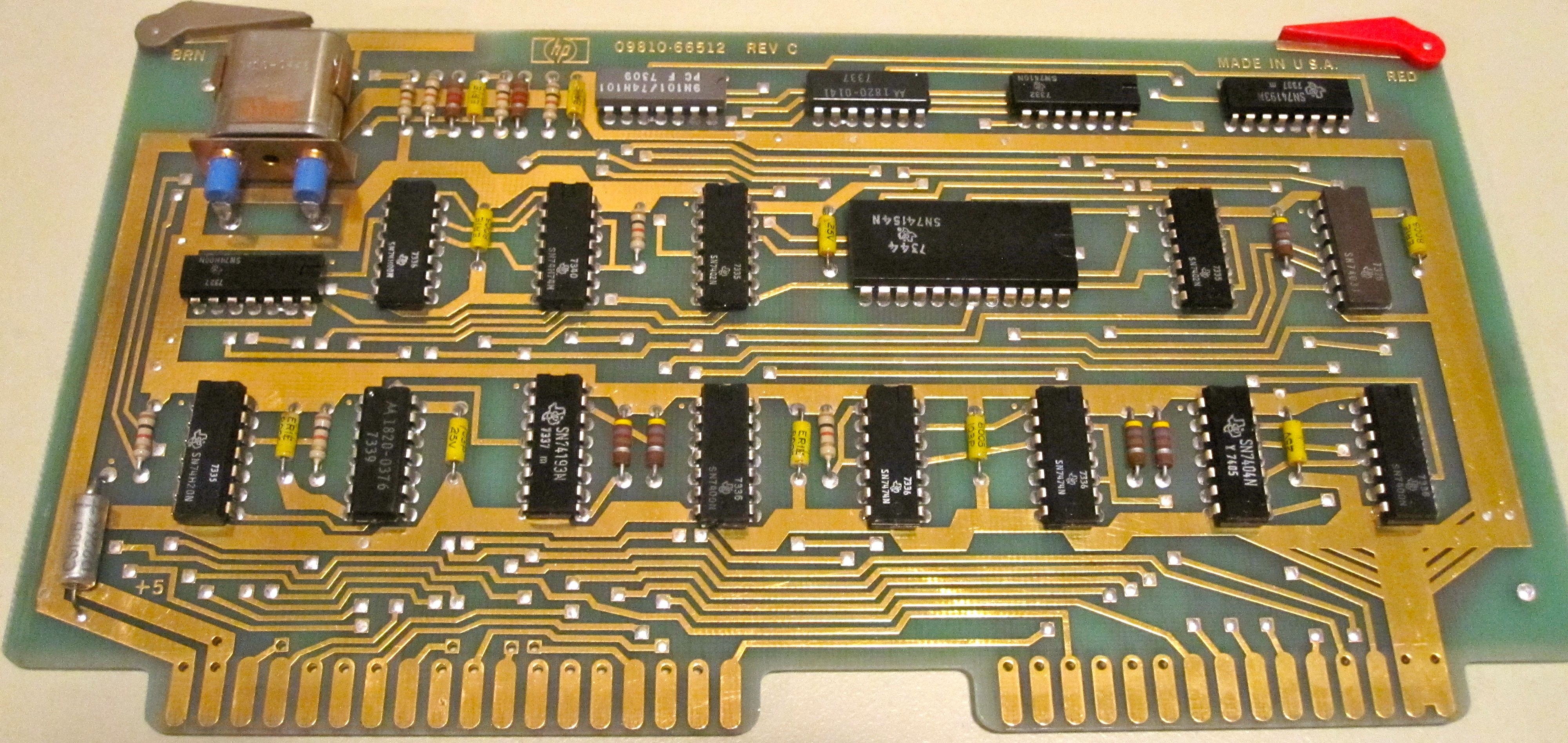

CPU clock and I/O state machine (09810-66512)

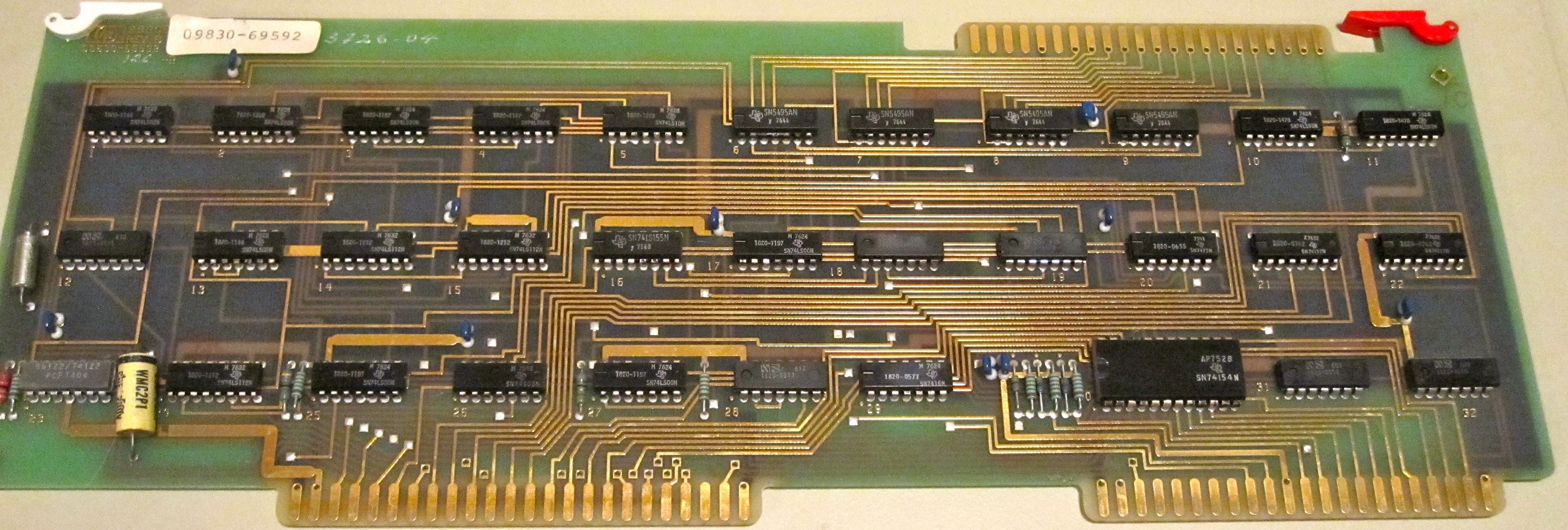

M register (09830-66582)

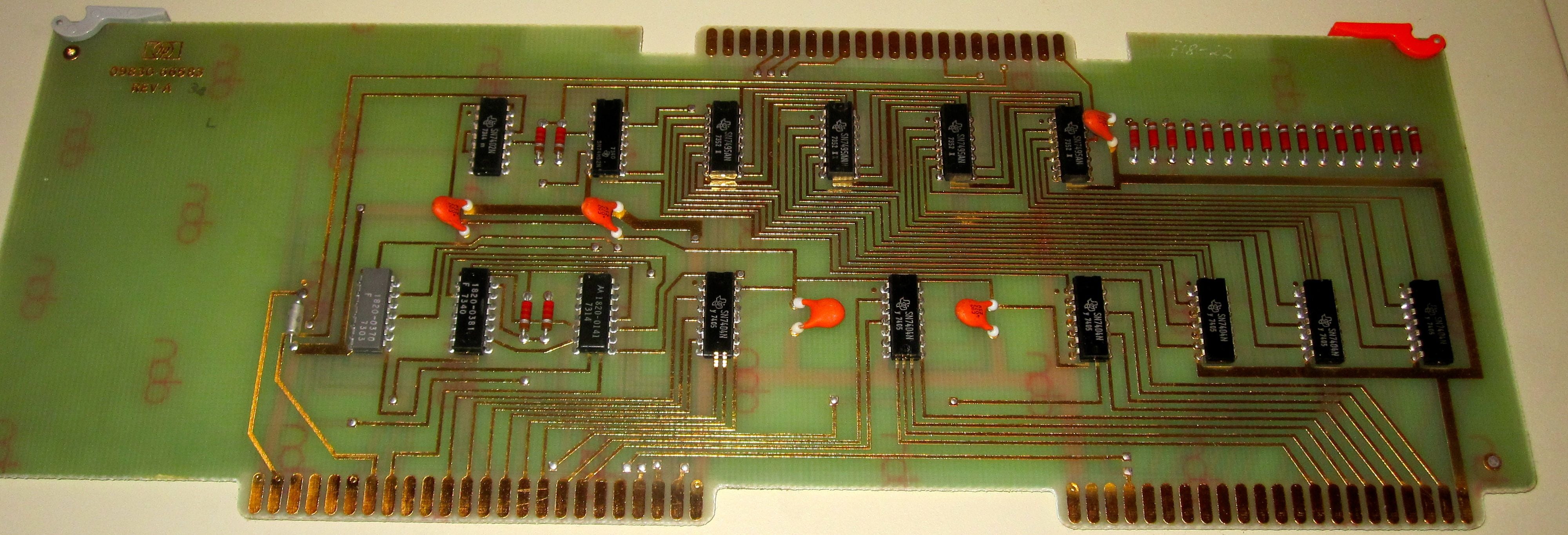

T register (09830-66583)

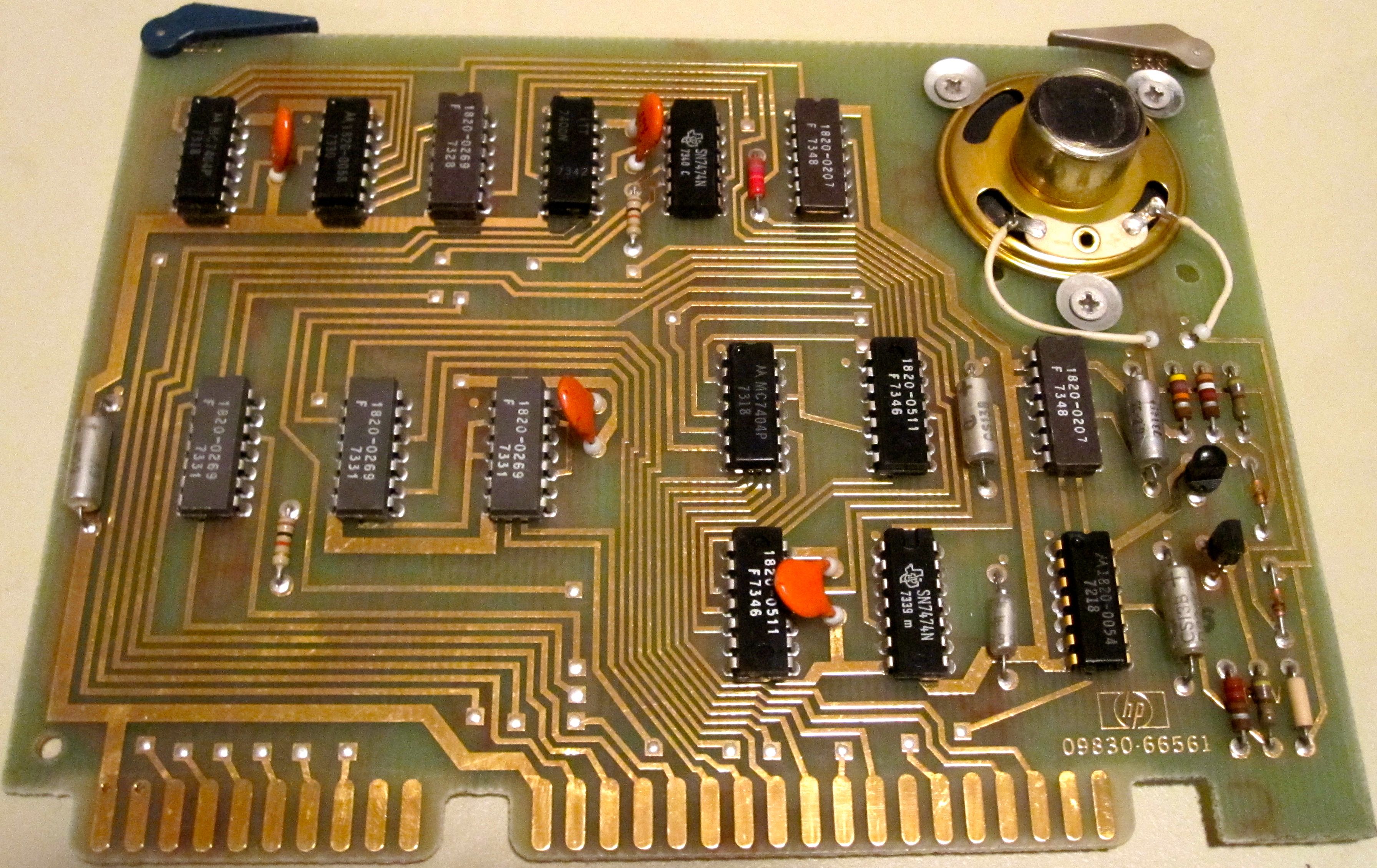

Cassette tape interface (09830-66561)

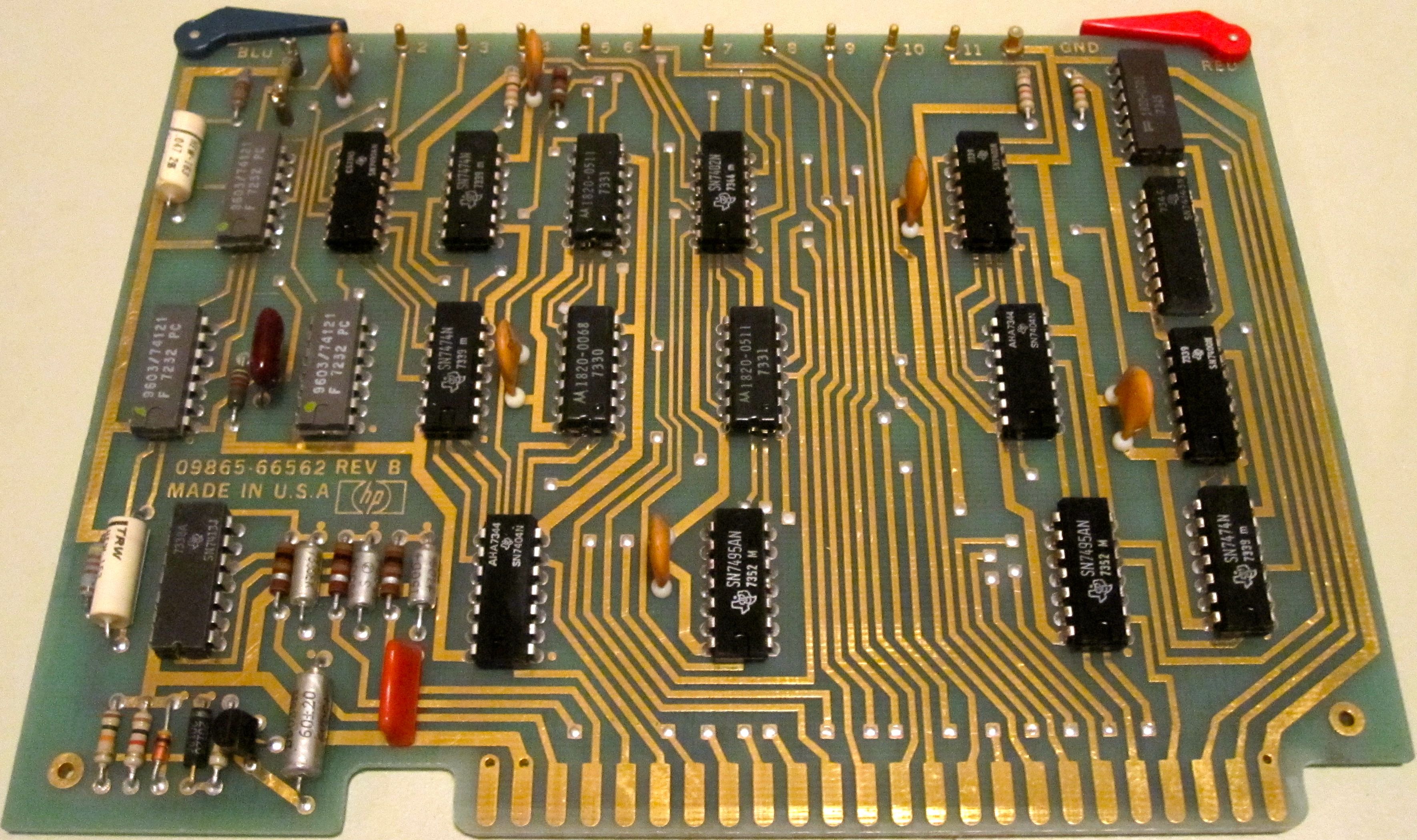

Cassette tape control board (09865-66562)

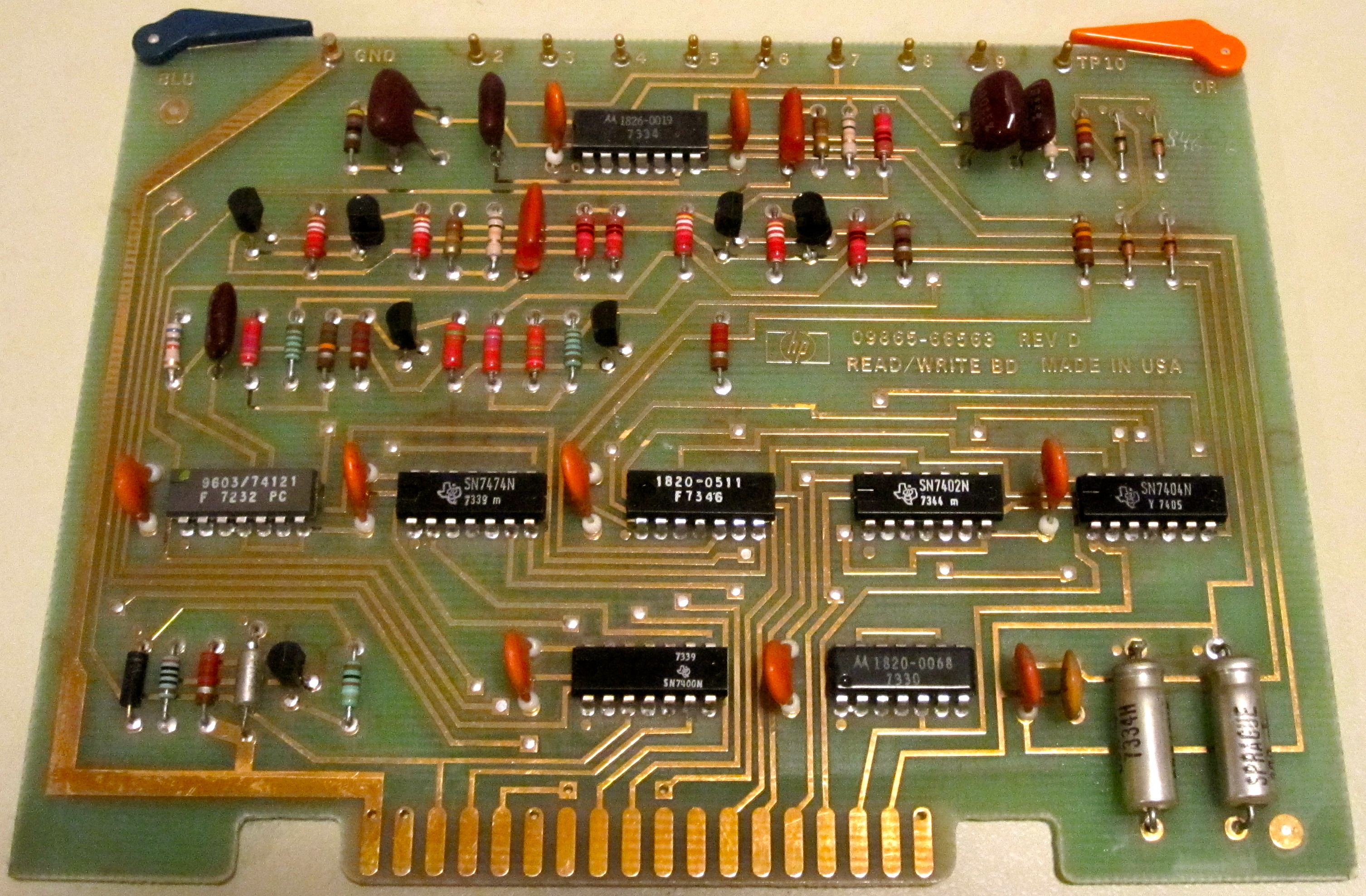

Cassette tape read/write board (09865-66563)

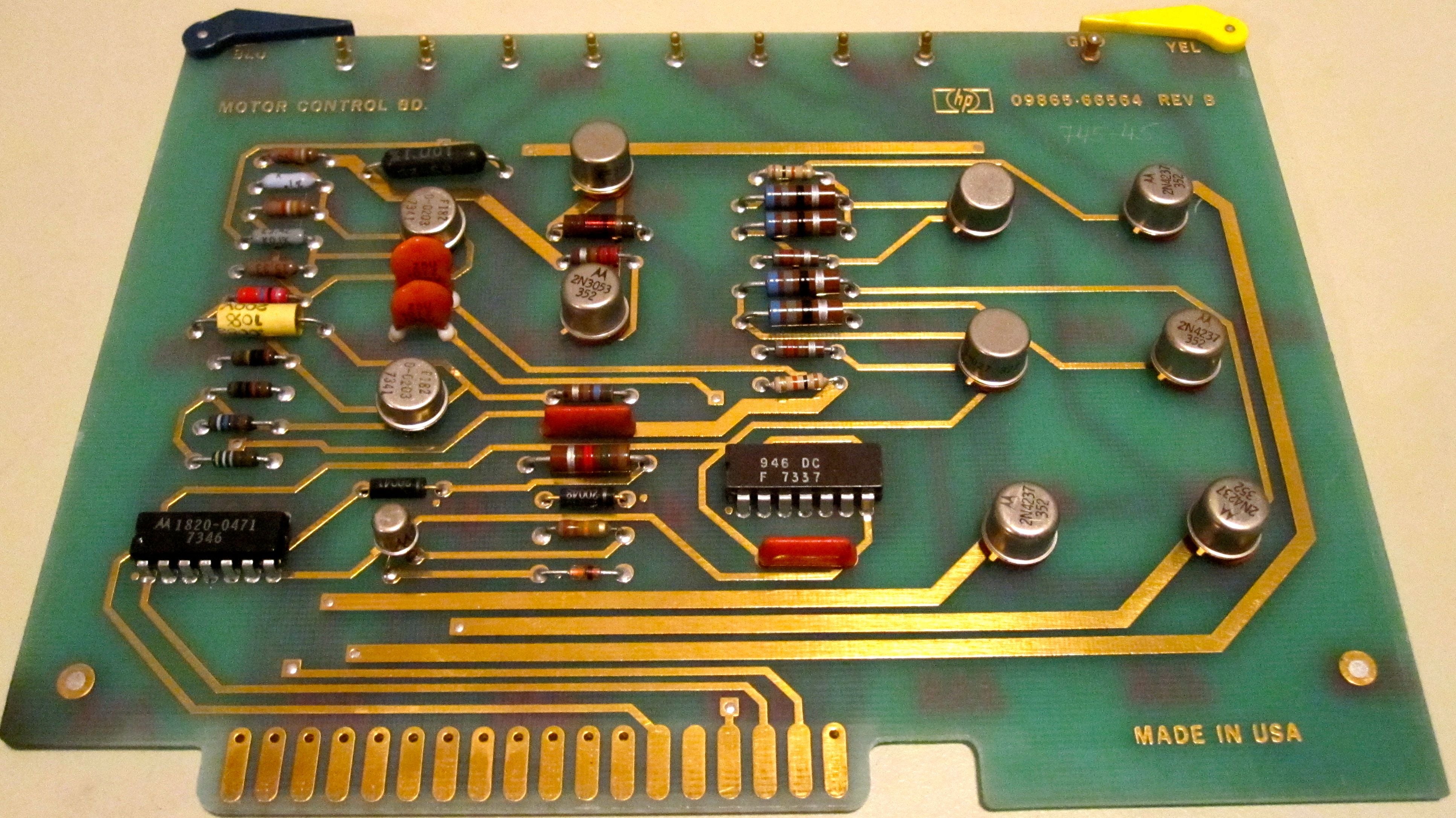

Cassette tape motor control board (09865-66564)

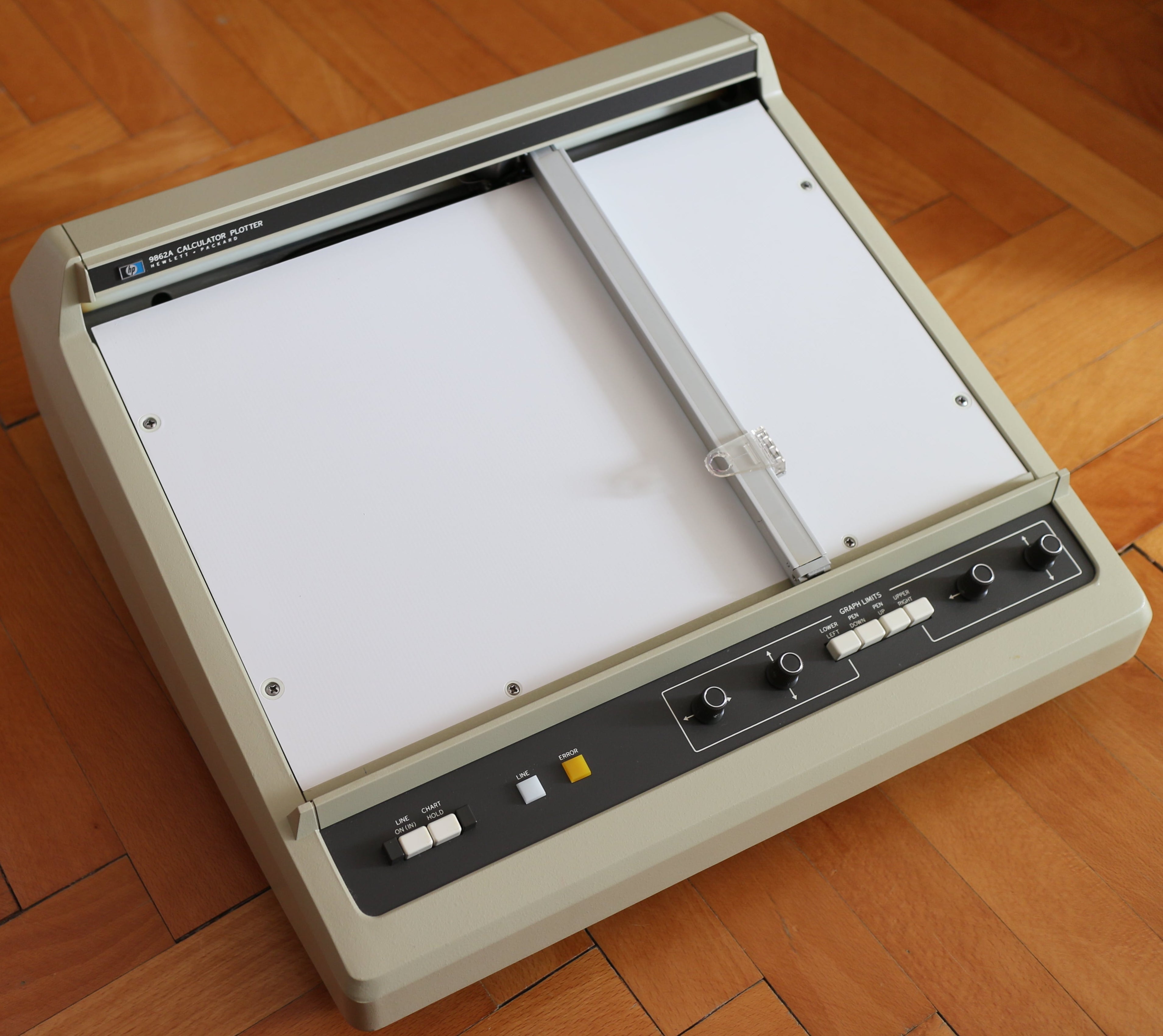

HP 9862A plotter

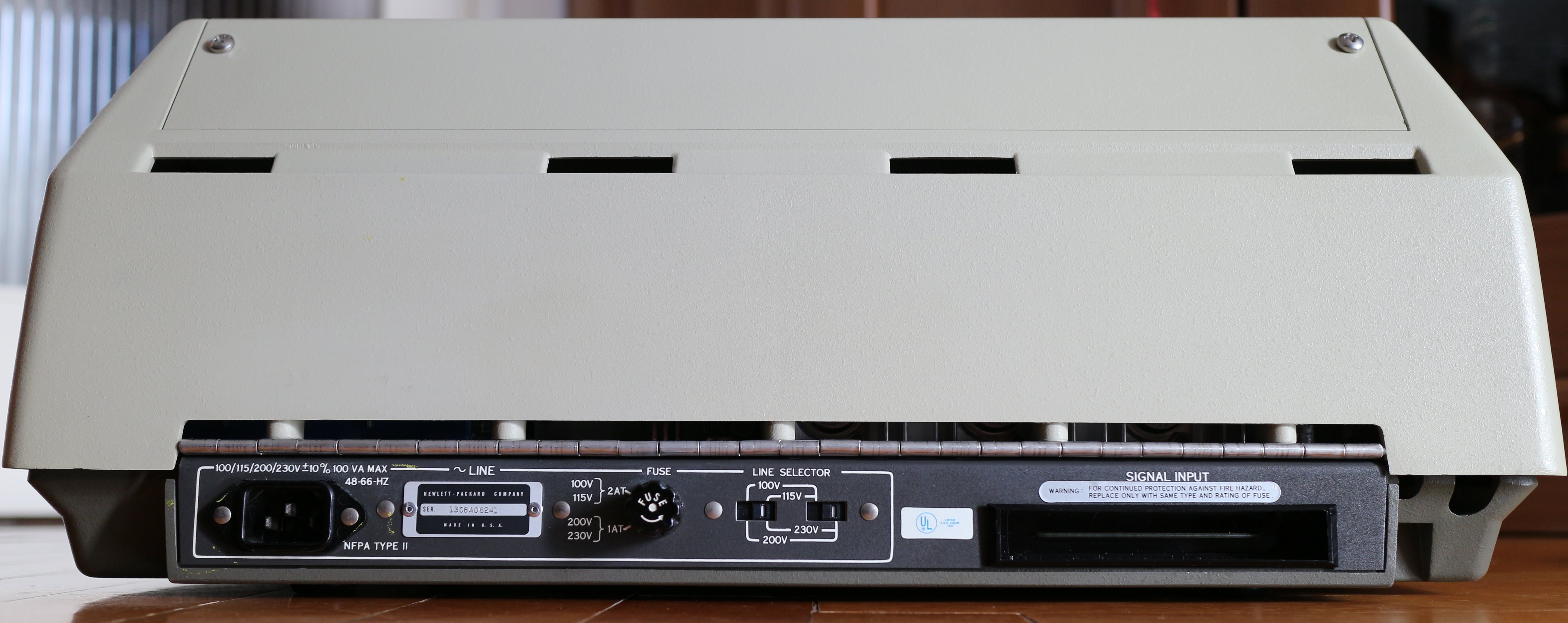

Back of the HP 9862A plotter

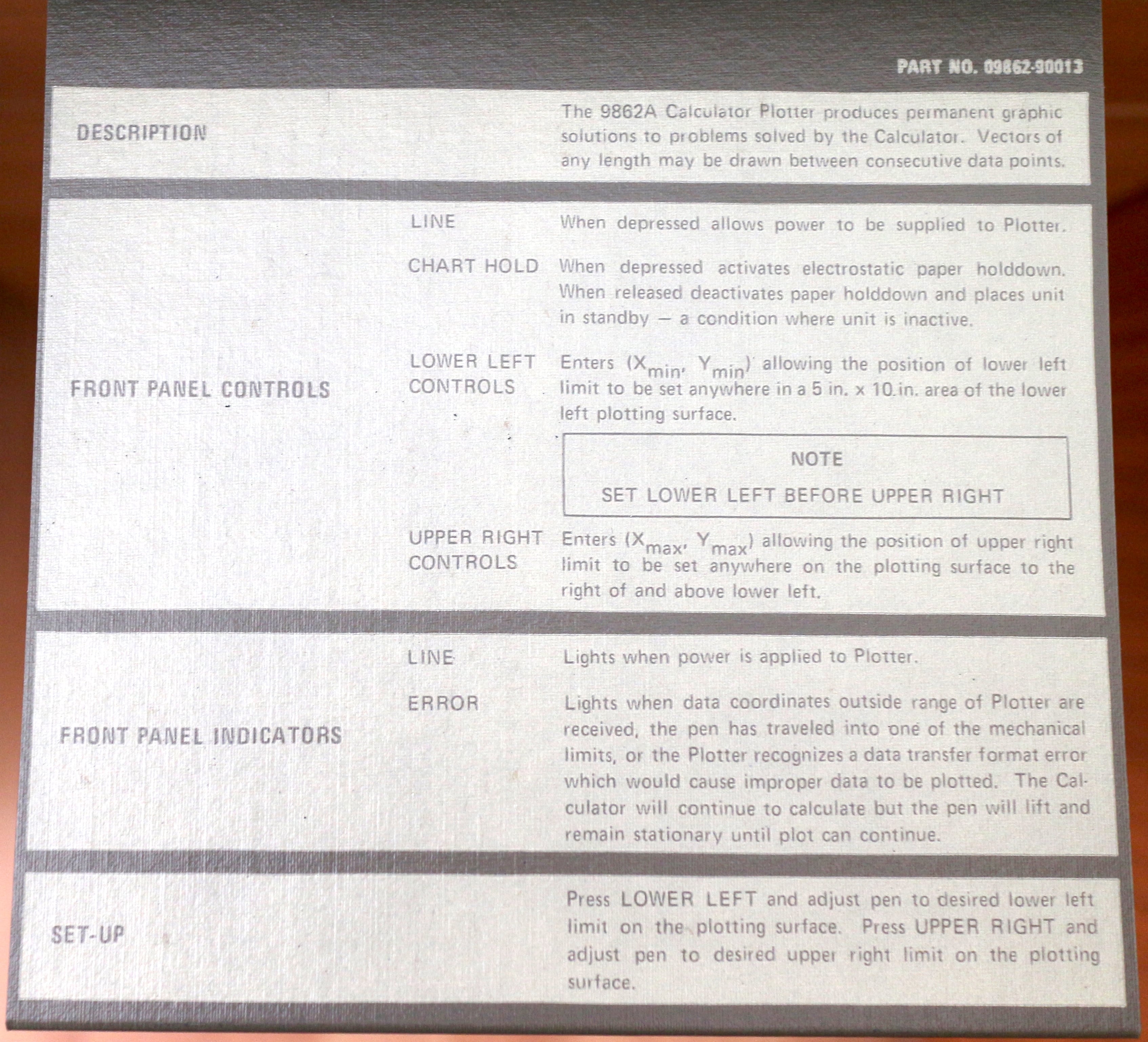

Pull-out tab with instructions for the HP 9862A plotter

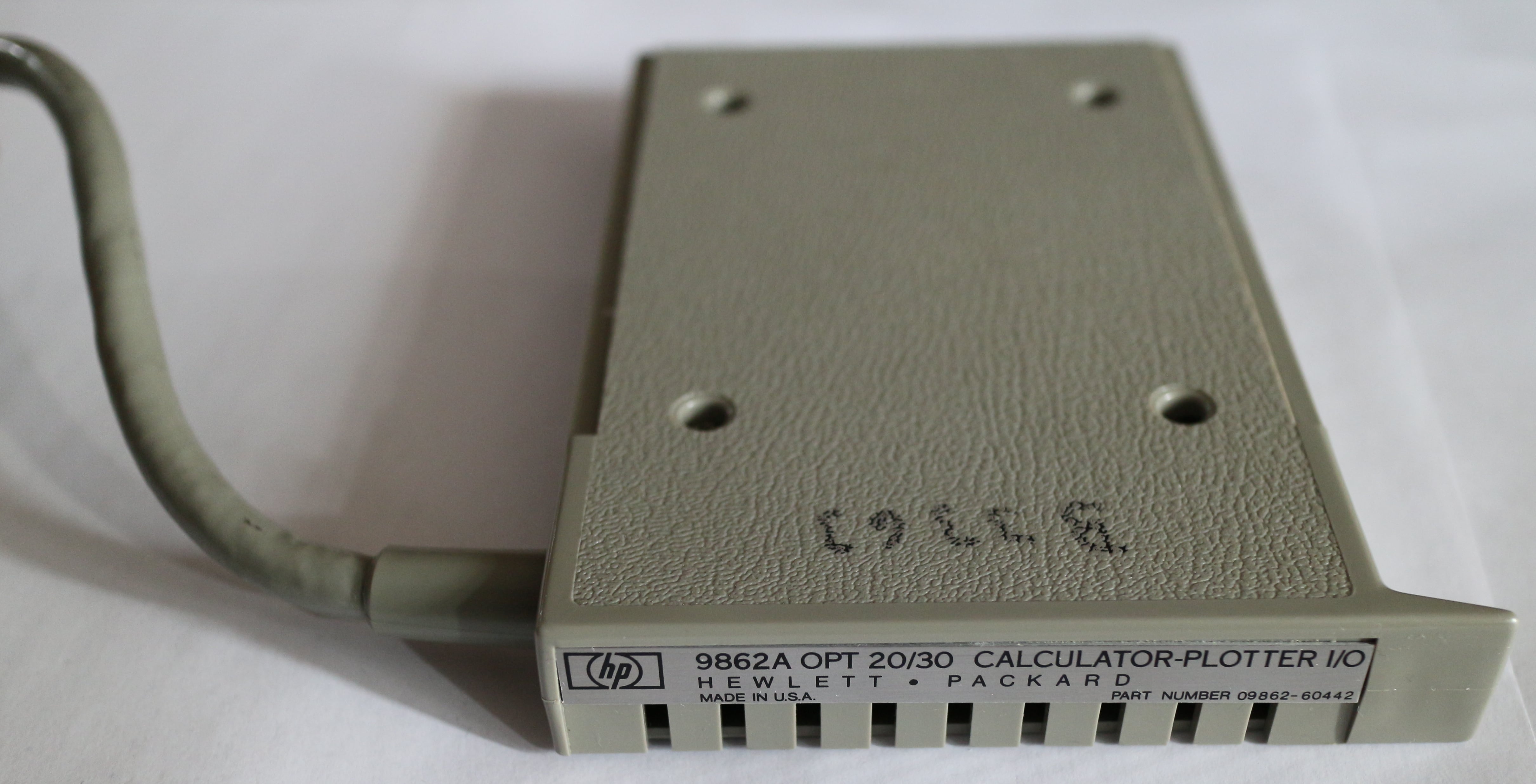

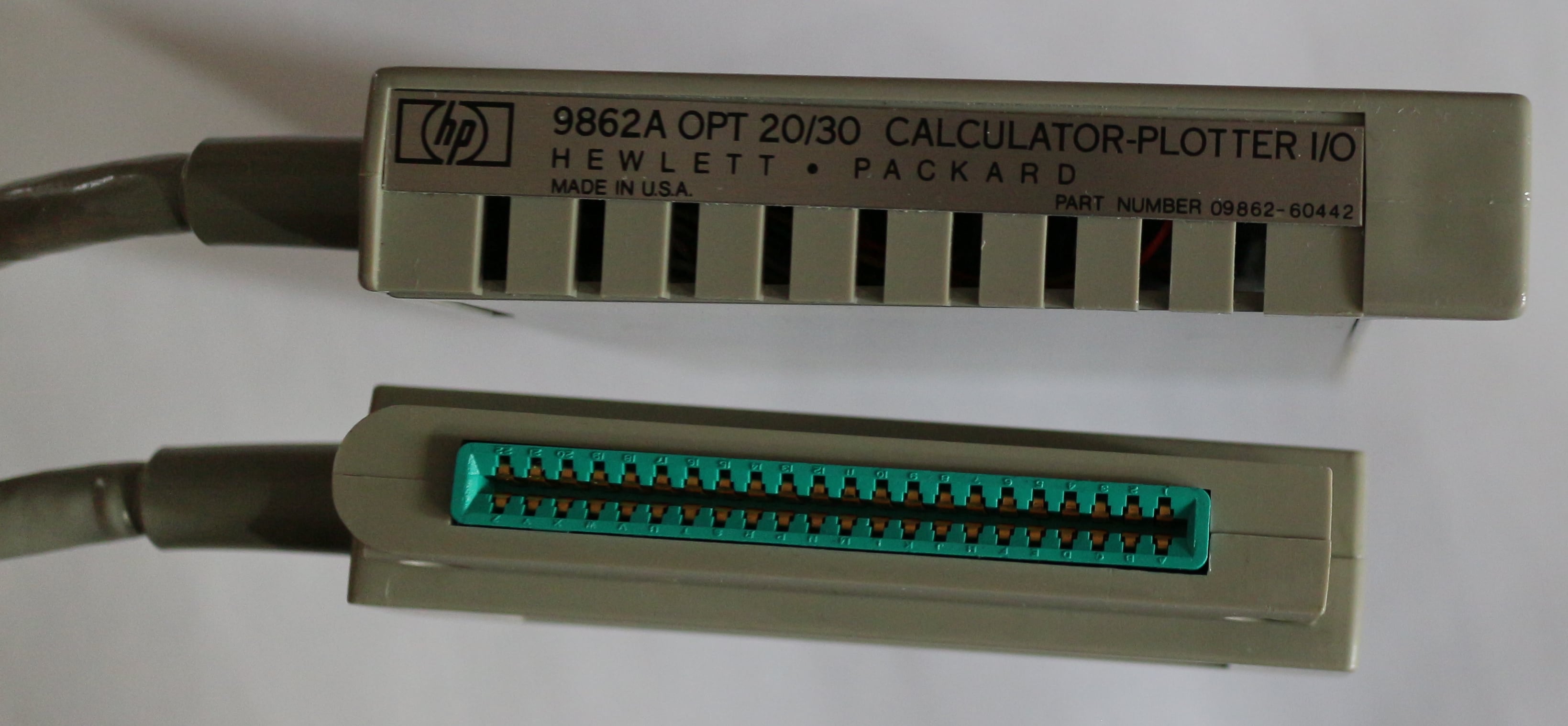

HP 9862A plotter interface module and connector
HP 9862A plotter interface module

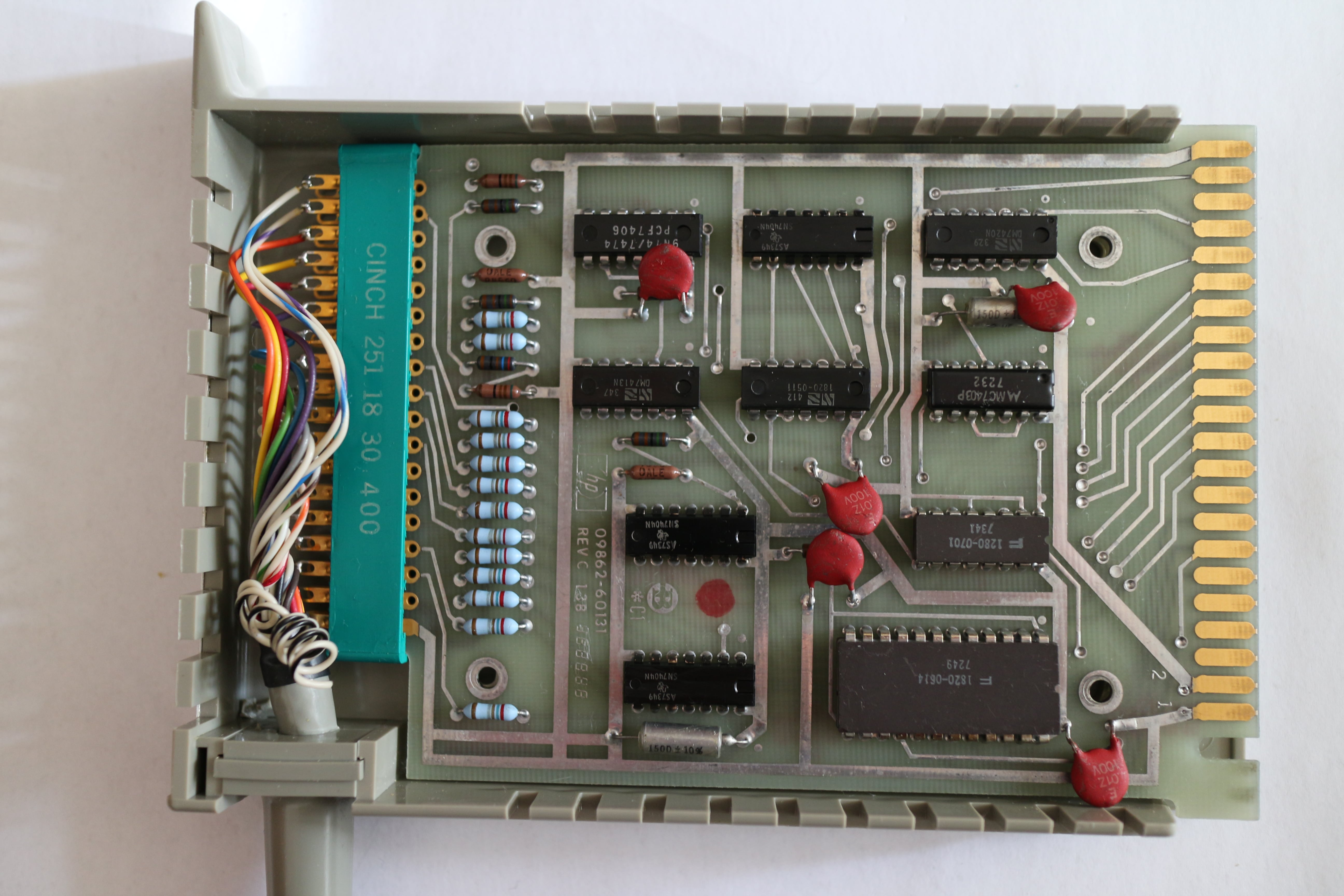

Inside the 9862A interface module

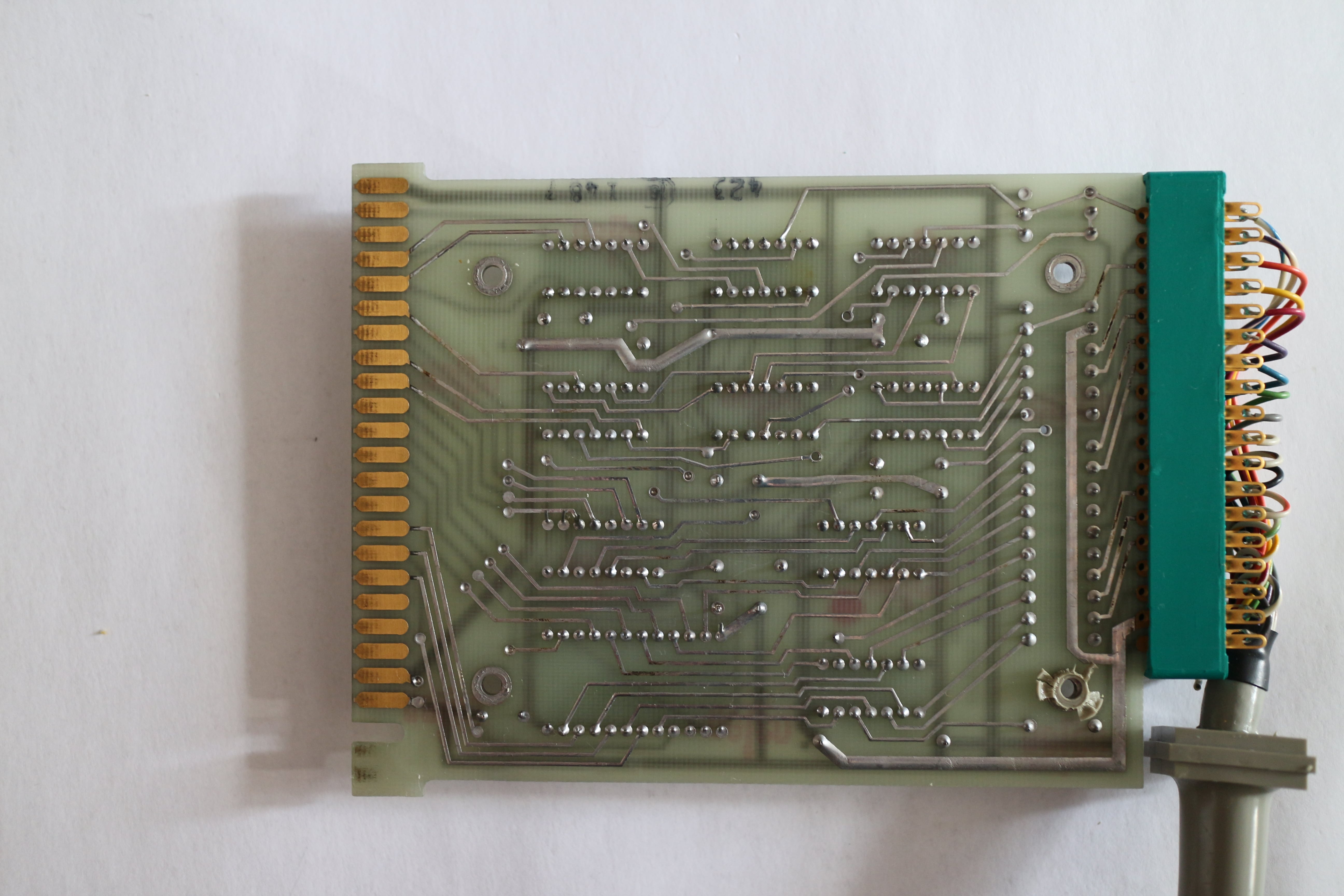

Inside the 9862A interface module (back of the PCB)

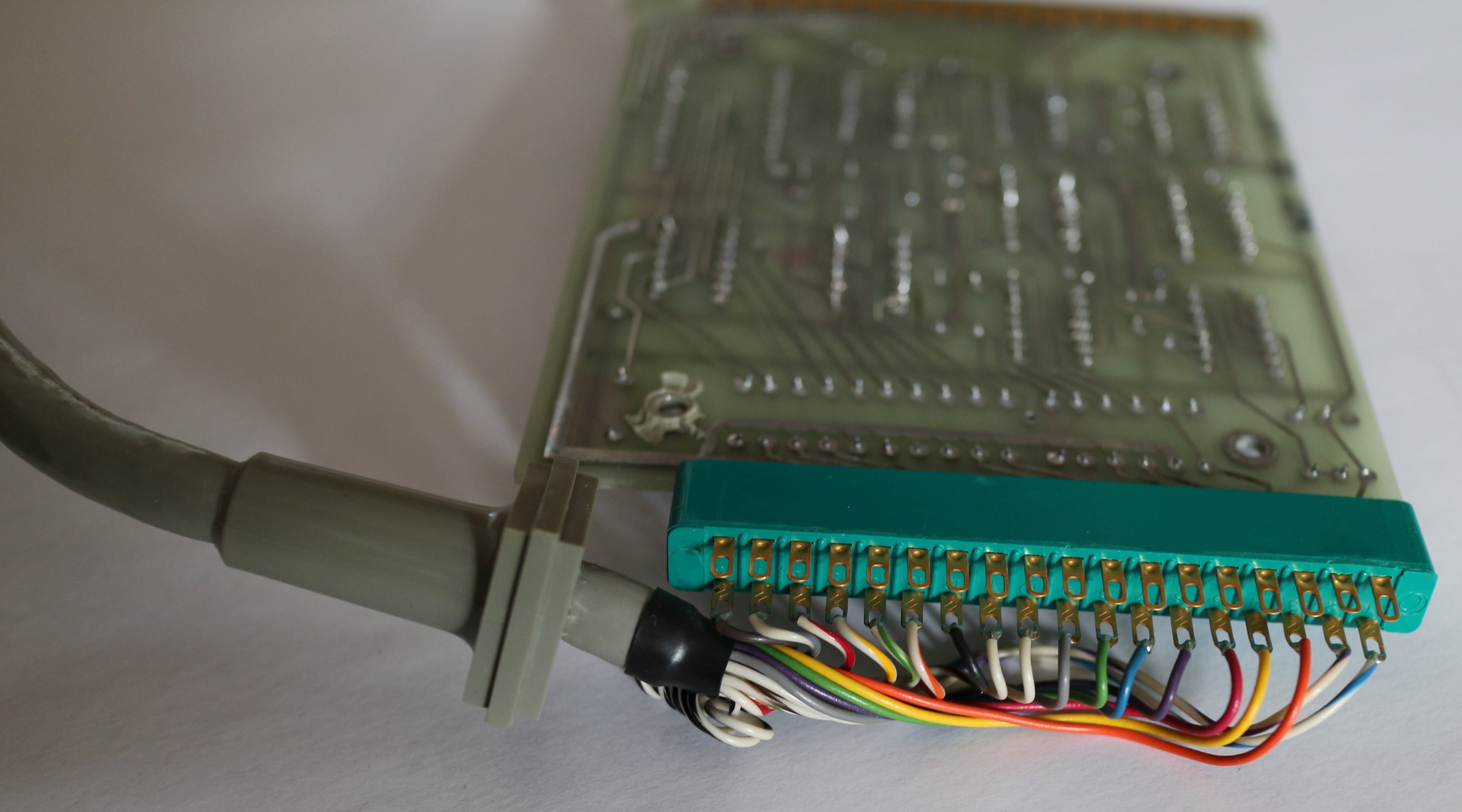

Wires from 9862A interface PCB to cable

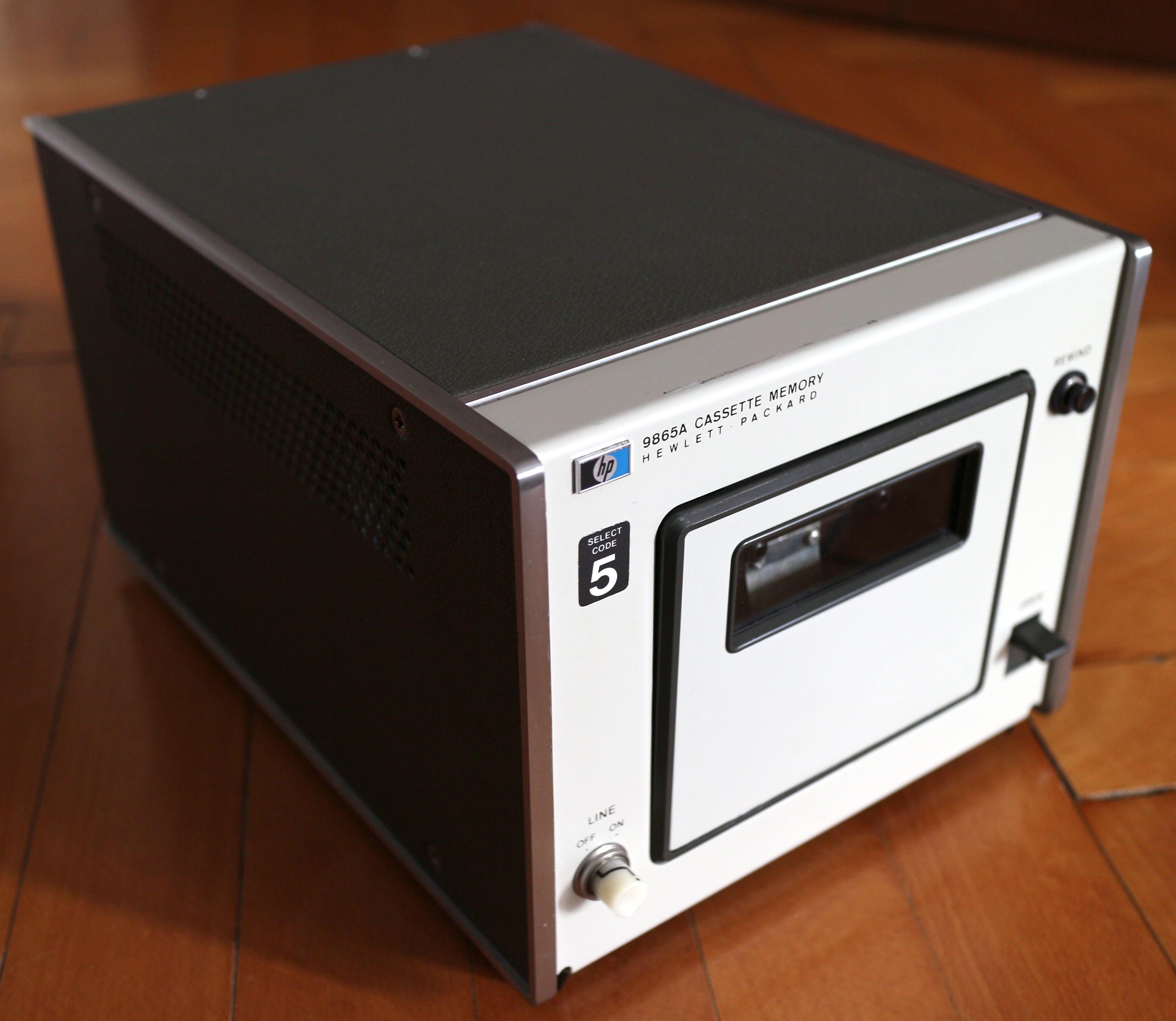

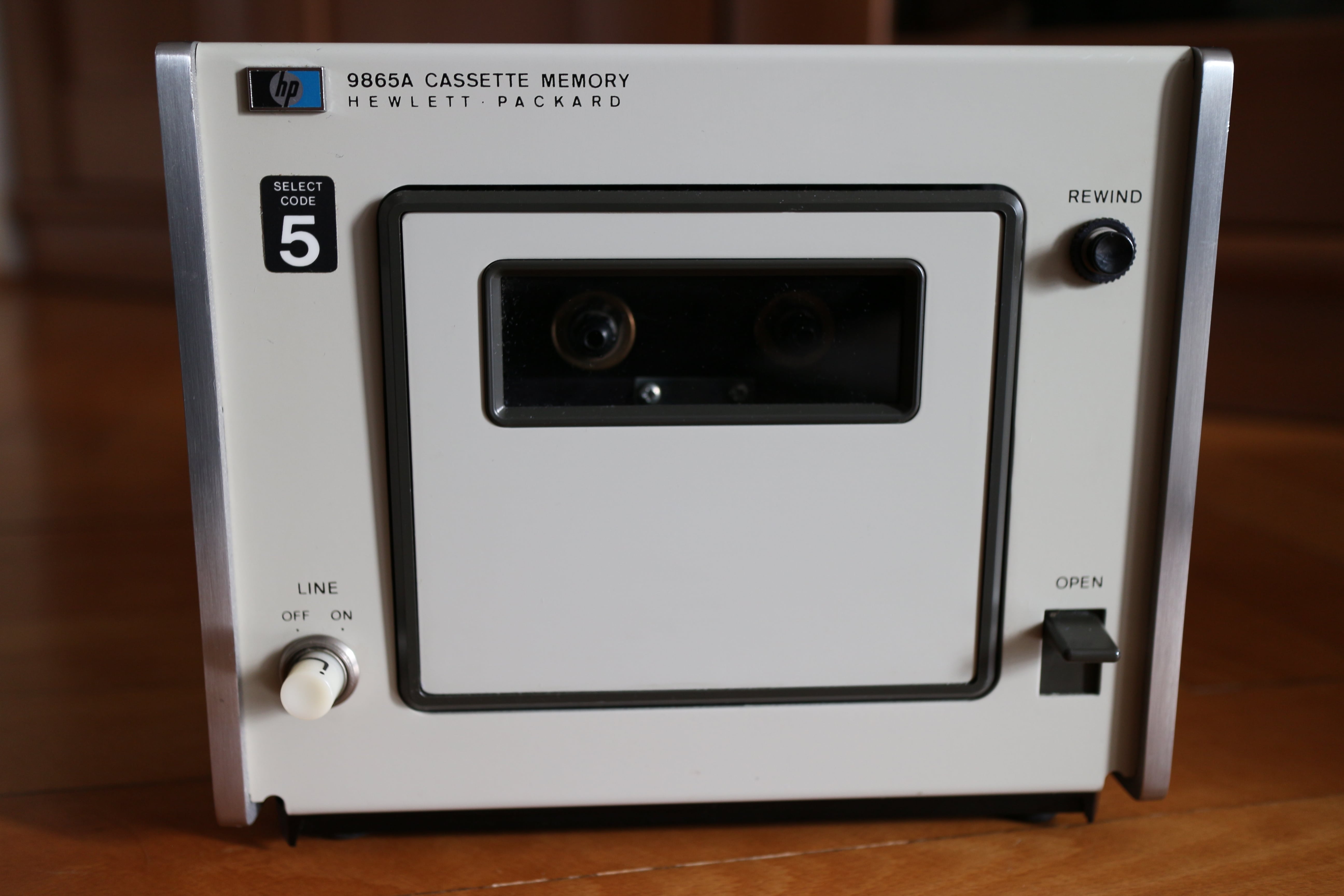

HP 9865A external cassette tape drive

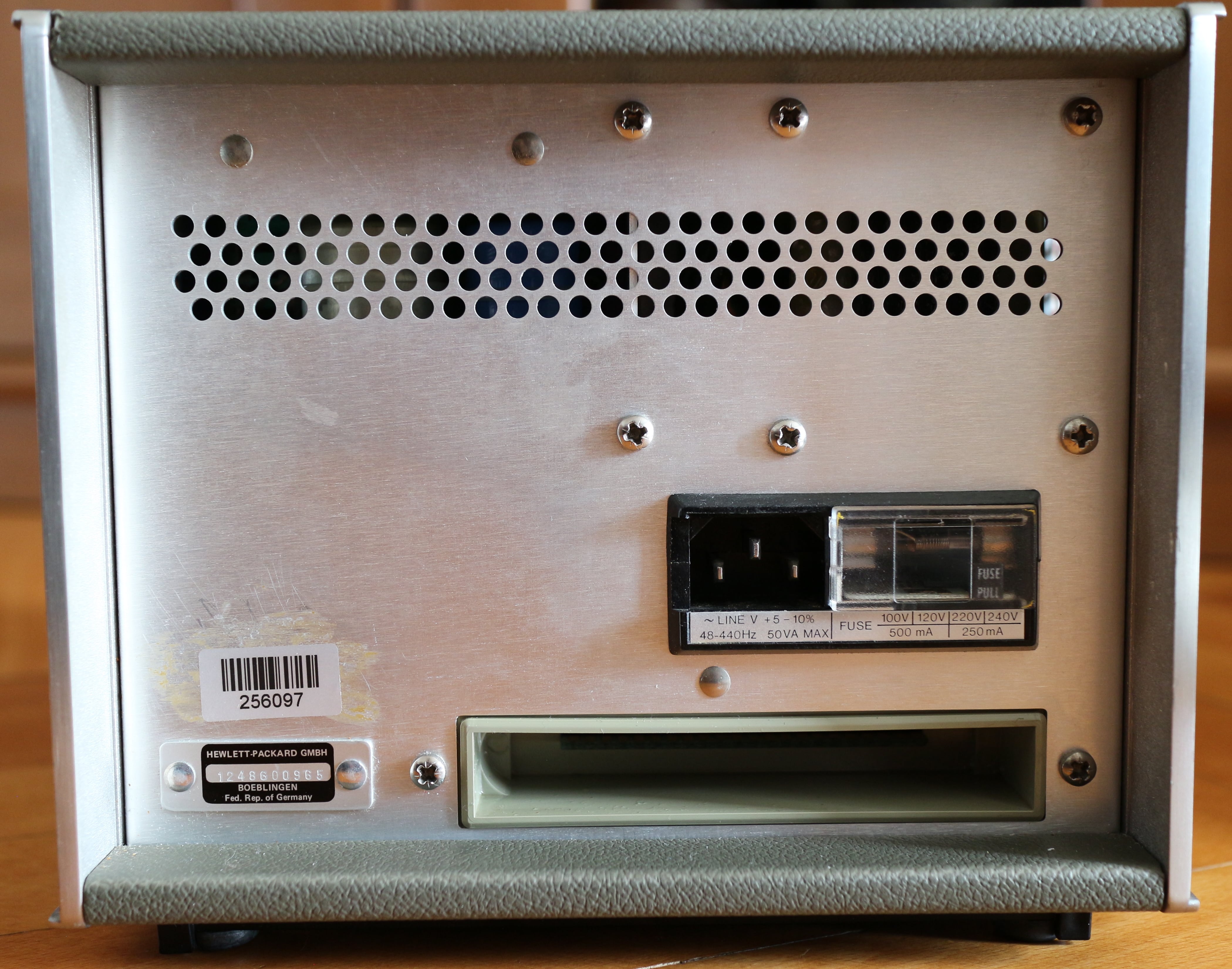

HP 9865A cassette memory (front view)
HP 9865A cassette memory (back view)

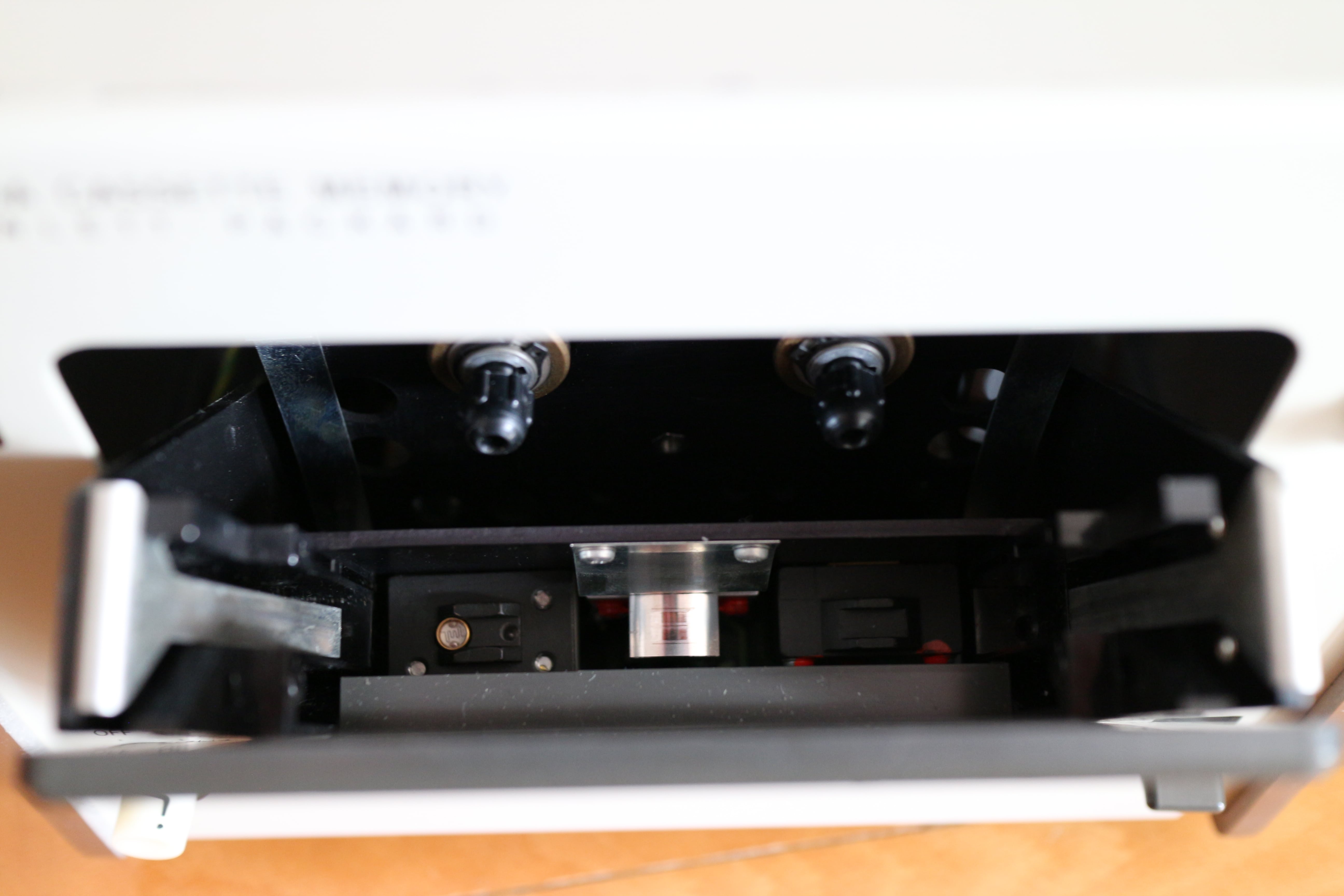

9865A drive mechanism close-up

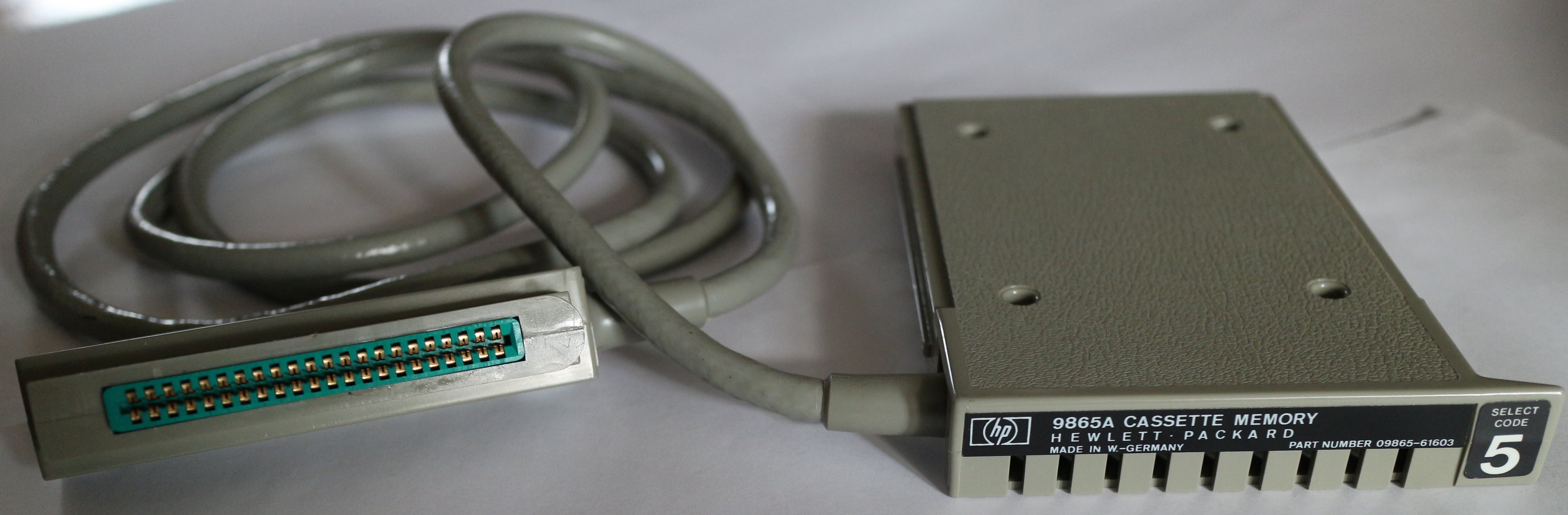

HP 9865A cassette tape drive interface module

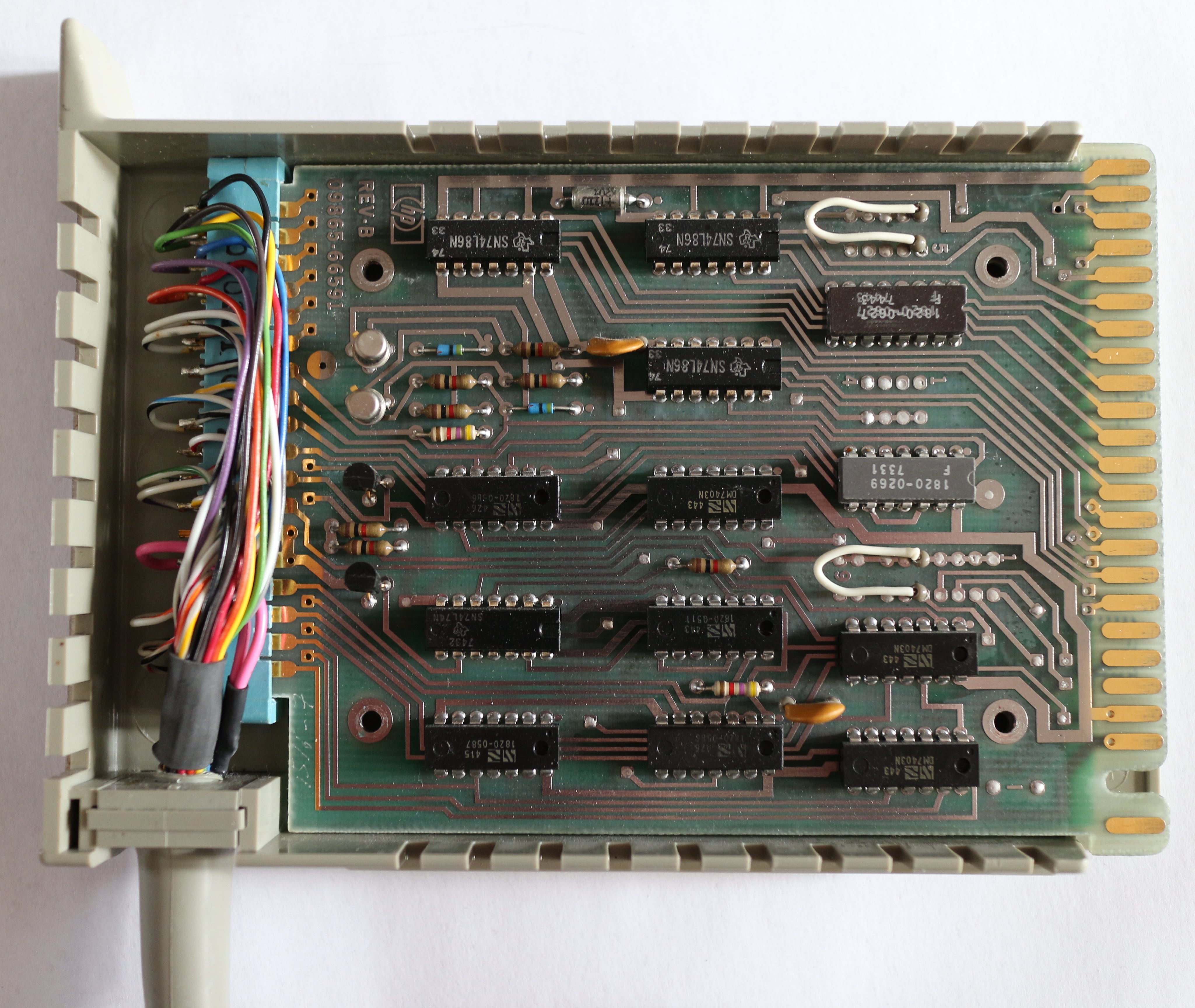

Inside the 9865A interface module

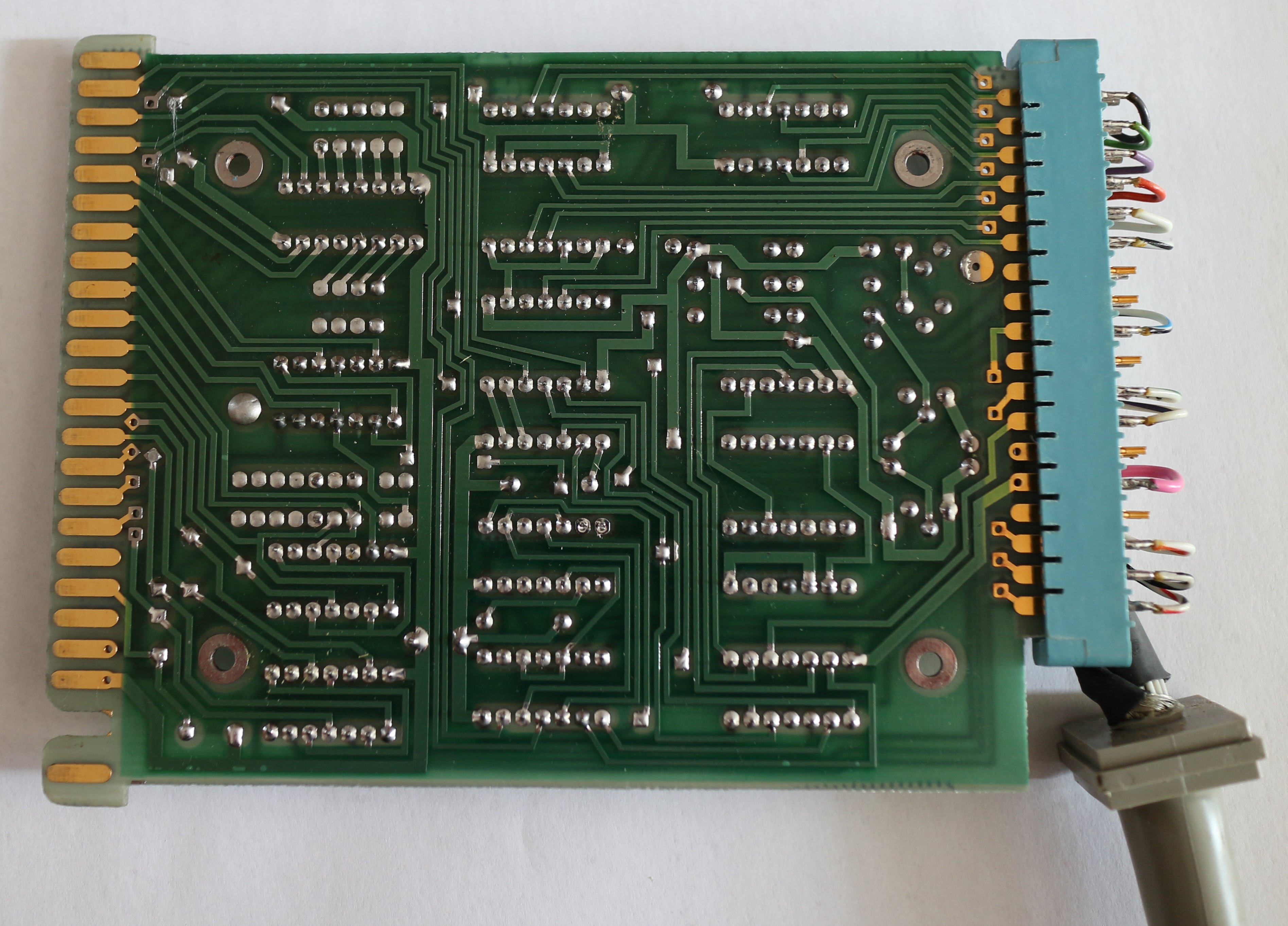

Inside the 9865A interface module (back of the PCB)

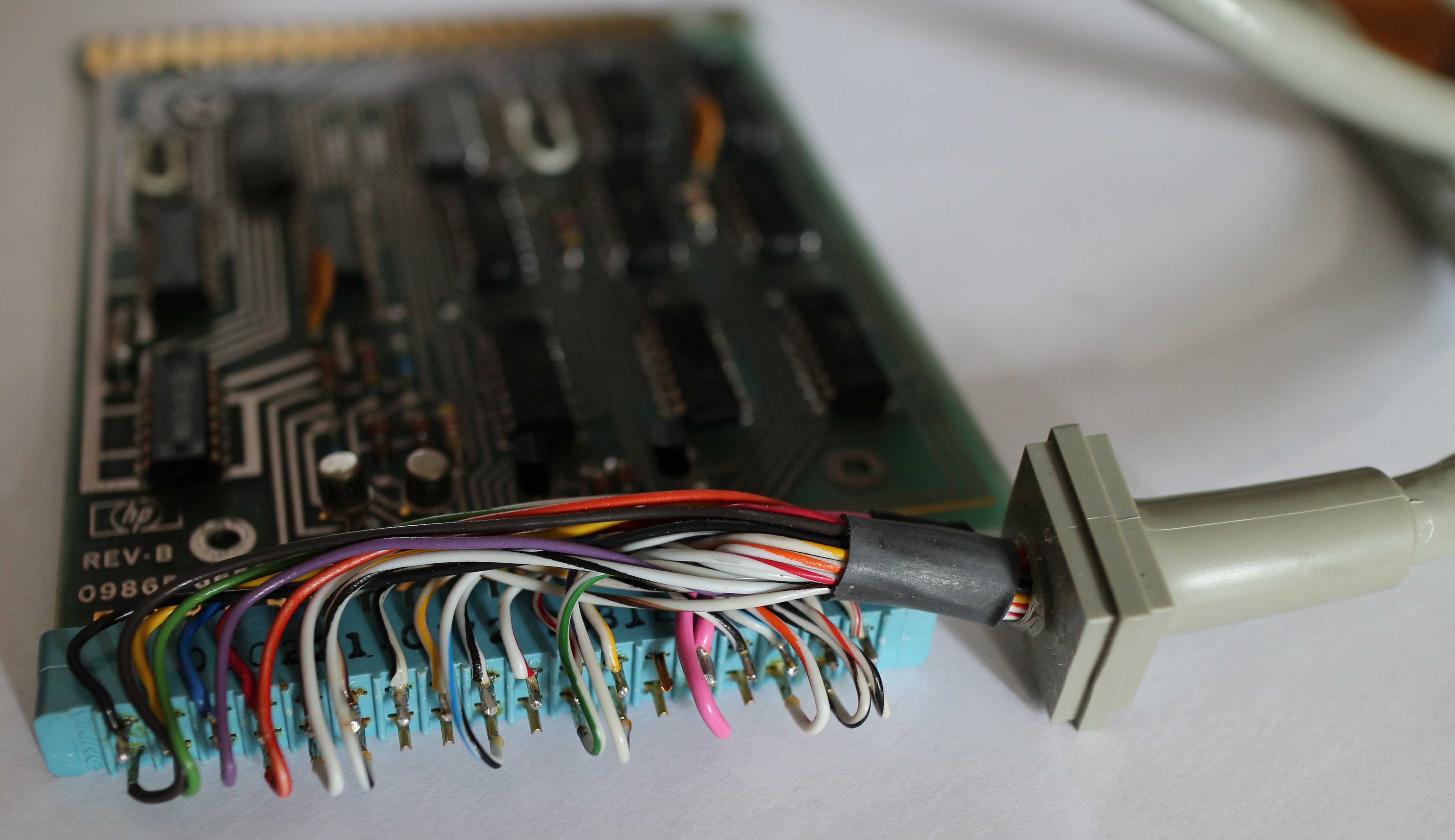

Wires from 9865A interface PCB to cable
Inside the 9865A cassette tape drive

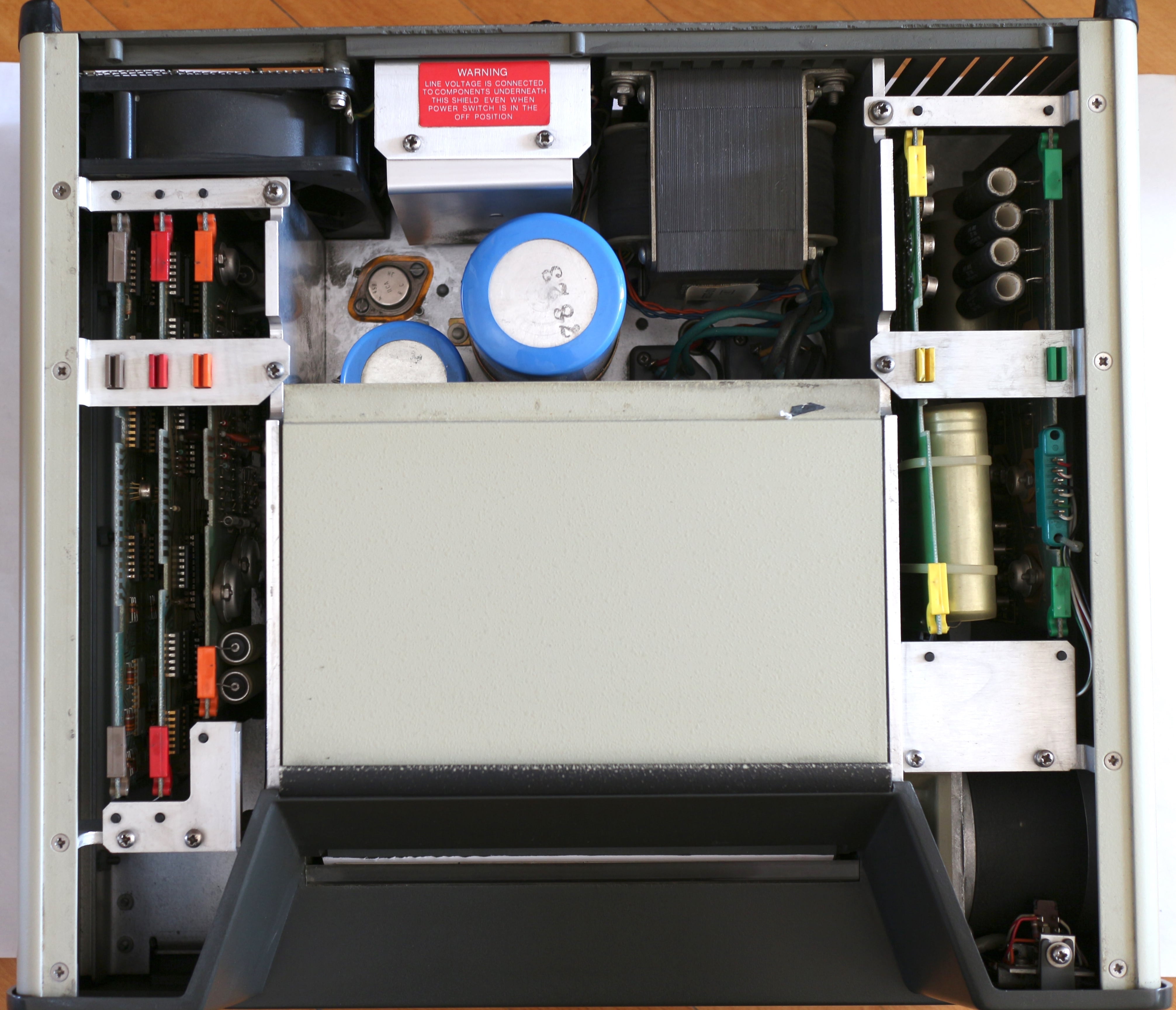

Inside the 9866A thermal printer

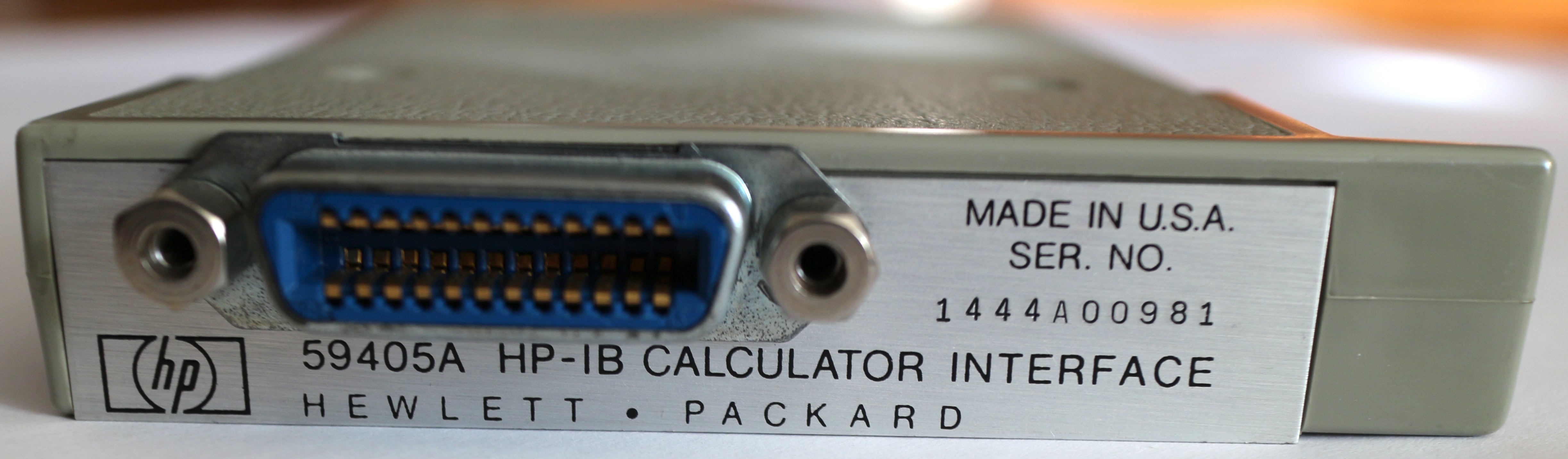

59405A HP-IB interface module

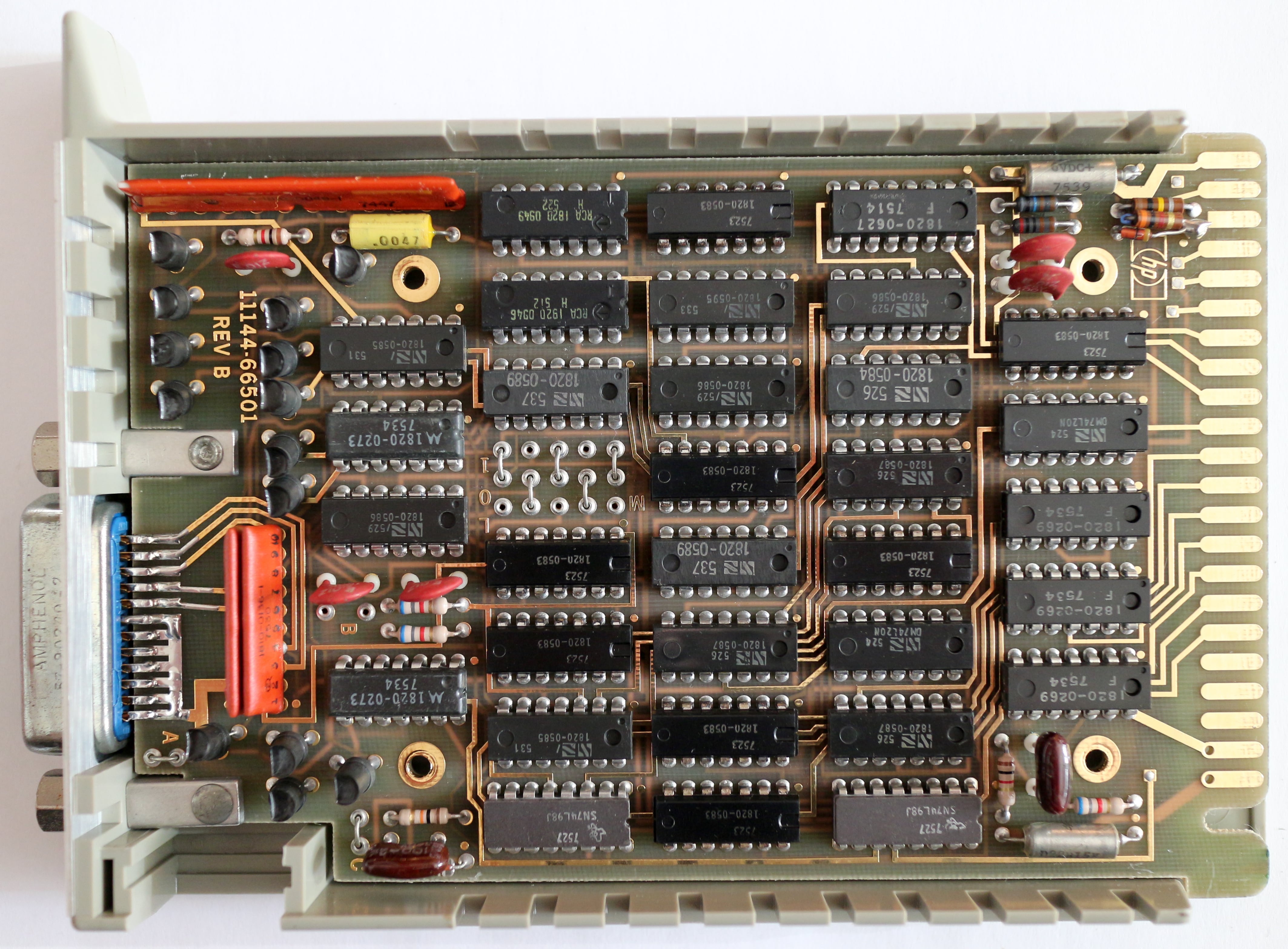

Inside the 59405A HP-IB interface module
